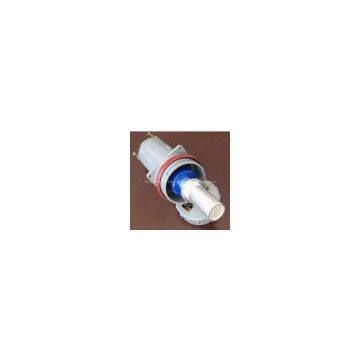

Cable Electrical Connector
- 2200 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
IP65 37 pin connector
-
Flameproof Enclosure "d" Electrical Connector for Oil Rig
-
Non-spark of 3 Phases 4 Wires Plug & Socket Connector
-
Non-spark of 2 Phases 3 Wires Plug & Socket Connector
-
Non Sparking of 3 Phases 5 Wires Plug & Socket Electrical Connector
-
Non Sparking Explosion-proof of 20 Contacts Plug & Socket Electric Connector
Product Details
Brand Name | Baoji Youtai | Place of Origin | China | |
Model Number | 1000yt |
Product Description
·ATEX Certified---for zone 2-IIC hazardous environment.Certificate number 07 ATEX3202.
·CQST Certified--- examined and tested for qualification by China National Quality Supervision and Test Center for Explosion Protected Electric Products (CQST) and obtained the explosion-proof certificate.
·Standard---IEC 60079-15:2001 Electrical apparatus for explosive gas atmospheres Part 15:Type of protection n,MOD(GB 3836.8-2003).
Main Technical Features
Explosion-proof Sign |
ExnAIIT4 |
Working Voltage |
500V |
Working Current |
15A~200A |
Ambient Temperature |
-20oC~+60oC |
Withstanding Voltage |
3000V(1Min) |
Protection Degree |
IP54 |
Insulation Resistance |
≥1000MΩ |
Contact resistance |
≤ 1mΩ |
Life Duration |
1000 times |
Both pin and jack could be inserted in plug or socket |
Product Description
Shell material: Die cast aluminum
Connection type: Crimp
Wire Gauge: 0.5-120mm2
Flammability: UL94-V0
Degree of pollution: 3(C)
Overvoltage: III
Benefits
·Rugged:All components have aluminum housings
·Minimal heat build-up
·Energy savings
·Low maintenance costs
·Perfect function over 1000 mating operations
·Longer product life
