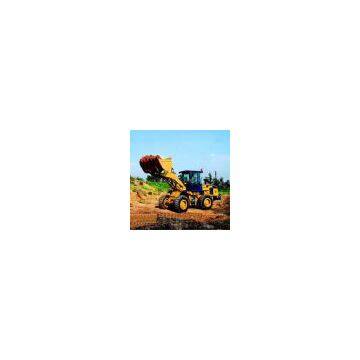

Wheel Loader 835RR

Place of Origin	China

Features
Overall data
Operating Weight                 11600kg
Bucker capacity                     1.7m³
Rated Load                           3000kg
Maximum traction                 100+3kN
Grade ability                          29°
Breakout force (tilt cylinder)         93.5+3kN
Static Tipping Load ( full 38°turn)       55kN
Engine                        CUMMINS QSB5.9-C130
Rated power               97kW(130hp)@2200rpm
Peak Torque                542Nm@1400rpm
Displacement                         5.9L
Cylinders-Bore X Stroke      6-102 X 120mm
Transmission                       ZF 4WG158
Type; counter shaft power shift, semi-automatic electrical hydraulic shifting control
Converter: single-stage, single-phase, three
Elements torque converter
Travel Speeds(km/h)
            Gear1    Gear2    Gear3    Gear4
Forward     0~6.6    0~12    0~25.6     0~37
Reverse     0~6.6    0~12    0~25.6
Steering
Articulated frame, full hydraulic power with flow amplified system, full-flow filtering
Axles
Self-locking differentials, wet multi-disc brakes
Brakes       Full hydraulic wet-disc braking
Service brakes: All wheels use wet multi-disc brakes
Parking brakes: Shoe-type brake, operator applies electronic control
Emergency brakes: Using parking brake, the brake will automatically/manually apply. Equipped with braking lowpressure warning and flameout emergency braking warning
Hydraulic system
Relief valve setting                   16Mpa
Hydraulic cycle time, rated load in bucket (in second)
Raise     Dump    Lower(empty, float down)     Total
4.8       1.1               2.9                8.8
Capacities
Fuel tank                                   200L
Hydraulic tank                            150L
Crankcase                                  12L
Transmission                               40L
Different & final drivers-front       28L
Different & final drivers-rear        28L
Tires                                   17.5-25
Equipment          ●Standard         ▲Optional
●CUMMINS QSB5.9-C130 engine        ● pilot control
●ZF 4WG158 transmission
●Automatic bucket leveler            ●lift kick-out system
●ROPS/FOPS cab                   ●Air conditioner
●General bucket                     ●back-up alarm
●Bias ply tires
▲Side dump                         ▲Log fork
▲Rock bucket                        ▲Ore bucket
▲Wheel loader scale
▲Automatic single lever with pilot control
▲Centralized automatic lubricating system
▲Radial ply tubeless tires

Specification
Dimensions with Bucket
A:Height to top of cab and canopy     3260()30mm
B:Ground clearance                  312()30mm
C:Length from centerline of front axle  1300mm
D:Wheelbase                       2800mm
E:Overall length                     6940()30mm
F:Maximum rollback at full height       60º
G:Bucket dump at full height           45º
H:Dump reach                       1080()30mm
I:Maximum overall height              4888mm
J:Hinge pin height at full lift            3721mm
K:Dump height                       2911()30mm
L:Maximum rollback at ground         40º
M:Hinge pin height at carry position     465mm
N:Maximum digging depth             35mm
O:Width over tires                    2300()50mm
P:Tread width                        1850()20mm
Q:Turning radius outside tires          4735mm
R:Maximum steering angle(each side)   40º
S:Bucket width                       2456()10mm
T:Turning radius outside bucket 5618 mm
