Reclaimed Water Automatic Self Cleaning Filter 50 - 3000m/H Flowrate Range
- T/T L/C D/P D/A
- 7 days
You May Like
-
Duplex SS Automatic Self Cleaning Filter Anti Corrosion For Amine Filtration
-
Industrial Water Filtration Systems , Cooling Circulation Sea Water Filter 50-3000m/h
-
Ultra Fine Automatic Self Cleaning Filter 50-3000m/H For Underground Water Treatment
-
Cooling Water Automatic Self Cleaning Filter For Recycled Process Water Filtration
-
1.0MPa Auto Self Cleaning FilterAutomatic Water Filter For Heat Exchanger Protection
-
Bentonite Scraping self cleaning irrigation filter with Mechanically Cleaned Latex Filtration
Product Details
| Brand Name | LIVIC | Place of Origin | China | |
| Model Number | GFK |
Product Description
Certification:ISO9001/SGS

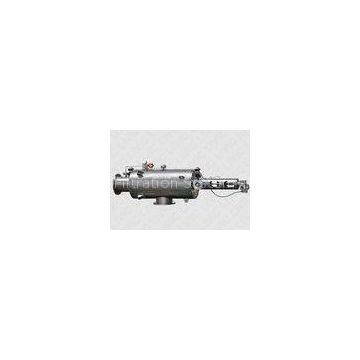

Raw Water Treatment Automatic Self Cleaning Filter,GFK Series for Reclaimed Water
GFK series automatic self-cleaning filter is the particularly designed high performance filter by LIVIC for the water fine filtration. The automatic self-cleaning filter can efficiently remove the suspended solids, sediment and planktons from the water. The automatic self-cleaning filter cleans and regenerates the filter screen with the most efficient and stable suction nozzle back-flushing principle. It can keep efficient self-cleaning performance and work continuously with one single filter. The back-flushing does not interrupt the water filtration process. Applied with LIVIC innovative design, GFK self-cleaning filter is universal for various water types including the raw water. It can run for a long-term without malfunction and maintenance. GFK series self-cleaning filter reaches the international first-class level in the product design standard, running performance and quality, which meets the most demanding requirement of end users.
The water flows into the screen inside from the filter inlet, gets through the screen and flows out from the outlet. The impurity particles are blocked by the screen mesh. After the accumulation of more particles, the filtration pressure drop rises to preset value (usually 50 KPa). The control system triggers the cleaning sequences. Open the back-flushing valve A and the auxiliary back-flushing pump. The gear motor drives the reciprocating scanner at the same time. The dual-channel back-flushing tube moves helically and cleans the screen inside with suction nozzles. Because the back-flushing valve A opens, the differential pressure happens in the postion where group A nozzles contact the screen. The differential pressure = outlet pressure - back-flushing outlet A pressure. The outside filtrate reverse flow passes the screen and injects into the group A suction nozzle inside. The impurities and particles on the inner surface are flushed out by the reverse flow and the filter screen filtration capacity is regenerated. After all the screen area is scanned and cleaned by the suction nozzles, one back-flushing cycle is completed. During back-flushing, the filtration goes on and Only very low fluctuation of flow rate and outlet pressure happens.
Start the large particle back-flushing function by time mode after running for a period. Keep back-flushing valve A closed and open back-flushing valve B. The gear motor drives the group B suction nozzles to back-flush out the large particles that cannot be removed by the group A suction nozzles, which will avoid the malfunction resulting from accumulated large particles for a long time.
| The spring-loaded contact suction nozzle can back-flush the particles out of the screen inner surface. Ir moves against the screen inner surface, which greatly reduces the un-filtered water around the nozzle flowing into the nozzle when back-flushing. Most of the water comes from the filtrate opposite the nozzles. It greatly increase the back-flushing velocity and intensity and correspondingly increases the back-flushing performance. Even when filtering the turbid water with the fine screen, the screen can be back-flushed clean completely and the flowrate keeps stable. This kind of back-flushing principle is the most efficient principle of all the current water self-cleaning filters, which makes sure of the water treatment system operation stability. |
Specifications:
