Home > Products > PE Film Blowing Machine > Double Head Film Blowing Machine

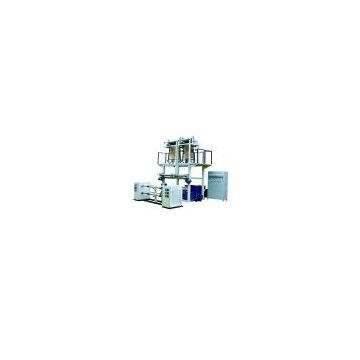

Double Head Film Blowing Machine
- 200 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | HUARUI | Place of Origin | China | |
| Model Number | SJ*2 Series |
Product Description
SJ2 Series Double Head Film Blowing Machine
Usage
This machine set is used for blowing LDPE and HDPE plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, gamedet industry and textile industry, etc.
Main technical variable
|
Model |
SJ*2-65 |
SJ*2-70 |
SJ*2-75 |
|
Screw diameter |
65mm |
70mm |
75mm |
|
Screw ratio |
1: 28 |
1: 28 |
1: 28 |
|
Screw speed |
10-110r/min |
10-110r/min |
10-110r/min |
|
Max output |
50kg/h |
70 kg/h |
90 kg/h |
|
Max.folding width of film |
550mm*2 |
650mm*2 |
750mm*2 |
|
Single-side thickness of film |
0.006-0.10mm |
0.006-0.10mm |
0.006-0.10mm |
|
Power of main motor |
18.5-22kw |
22-30kw |
37kw |
|
Total power |
40kw |
55kw |
70kw |
|
Weight of machine |
3000kg |
3800kg |
4500kg |
|
Overall dimension(m) |
4.8*2.2*3.8 |
5*2.4*4 |
5.2*2.6*4.2 |
