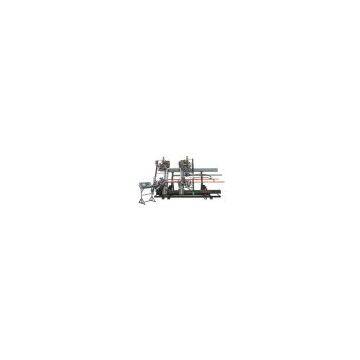

CNC Four-corner Vertical Welding Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Stone		Place of Origin	China
Model Number	SHP4-CNC-3000A

Product Description

CNC Four-Corner Vertical Welding Machine is the special equipment for the welding of angle profiles and rectangle welding in a ringle with advanced technology, stability and compact structure. This machine uses in pneumatic driving and the imported complete line pain gives the machine easy operation and high accuracy. The computer controlling system (program control) enlarged the reliability and ensures the high efficiently. This machine is suitable for large volume production. The pneumatic driving system uses the imported parts of excellent performance and longevity. The controlling part are imported computer for industry, the driving system uses the imported step-by-step motor and imported timing belt which ensure the orientation accuracy and durability.

Main parameter:

Working Air Pressure	0.5-0.8MPa
Air Consumption	200L/min
Power Supply	380V/50Hz
Input Power	11KW
Welding Dimension Range	300300-18003000mm
Welding Profile Height	20-120mm
Welding Profile Width	0-120mm
Outside Dimension	550017503000mm
Weight	3200Kg
