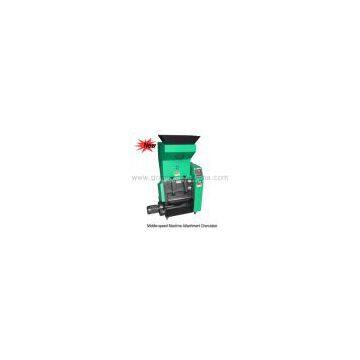

Middle-speed Machine Attachment Granulator

Brand Name	RHONG		Place of Origin	China
Model Number	RG-21series

The middle-speed beside-the-press granulators of RG-21 sereis are used together with plastics molding machine. It is designed to crush small shorts material and recycle them together with original material according to specificed proportion in order to avoide to reduce wastes, save power source, increase the utilization ratio of plastic material and lower the cost.

The characters of the machine
(1) The patent of bearing seat in order to avoide dust entering intothe bearing, long time using.
(2) Integral body, sturdy and durable, long time operation life, keepexcellent performance after using long time.
(3) Overload protector for motor and interlock protection device, double protection for the safety of worker and motor.
(4) Special cutter design adopting shear principle, made of high-chrominum shred, crush various plastics wastes easily.
(5) The gap of knives is adjustable, they can be dismounted when the have been unsharpde, and to be used repeatedly, long time using life.
(6) Separable design, the bunker, main body, mesh frame are dismounted easily, convenient for bunker cleaning.
(7) Special design in order to reduce the noise and vibration.
(8) Equipped with casters so as to move easily.

Specifications:

Model		RG-2136	RG-2142
Power	kw	3(1.5)	4(2.2)
Diameter of rotation	mm	210	210
Rotating speed	r/min	315(200)	315(200)
Rotating blades	PCS	3	3
Fixed blades	PCS	2	2
Cutting chamber	mm	210X360	210X420
Output	kg/h	150-250	200-300
Noise	dB(A)	80-90	80-90
Evacuation Blower	-	●	●
Evacuation Air	-	○	○
Amounted magnetic lron at charging inlet	-	○	○
Instantaneous retrieving system	-	●	●
Weight	kg	300	360

We reserve the right to change specifications without prior notice.
1) "●" is standard allocation, "○" is selection purchase.
2) The machine voltage specification is 3Φ, 380V, 50Hz. The voltage can be changed as you require.
