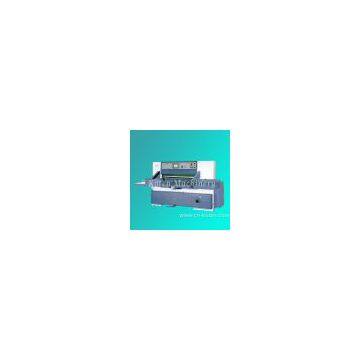

Computerized Pager Cutters

Introduction:

It is equipped with Japan AC digital servo controlling technology and 5.7 inches display screen, the data resolution rate is 0.01mm , has self-diagnostic function of troubles and displays the operating pattern, 60 program units,over 3000 different cutting positions , it can memorize, store and dynamic follow-up. The max paper-pushing speed is 5-10m/min. It adopts electric components made in japanese and Korea, Tanwan ball lead screw and linear double guide- rail. Its key parts adopt imported bearing of low maintenance.

Main Features:

1. Linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.
2. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof.Large side workingtable(1000*800) is optional.
3. IR photoelectric protection,buttons by two hands safety devices.
4. safety device for knife bed, overloading protection for cutting,automatic return safety device.
5.  imported hydraulic components are optional hydraulic system,the pressure can be adjusted.The paper is pressed twice by pressure-increased system.
6. mechanical assistance device for knife replacement makes knife replaced quickly and safely.
7. optical knife alignment equipped makes cutting more convenient.
8. chrome-plated working table.
9. ejecting device for knife bar.
10. flat worm speed reducer transmission.
11. PLC control system、imported ball lead screw is optional,inside electronic knife locker to make the cutting more safety and stable.

Main Technical Parameters:
