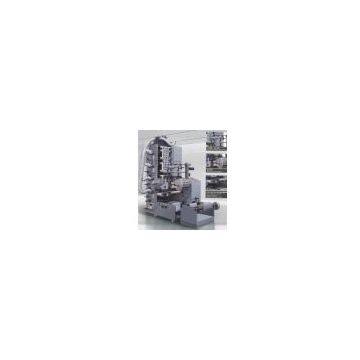

Flexo printing machine

A.CHARACTERISTIC
1,  Adopt the ceramic anilox cylinder to transfer the ink.
2,  Unwinding and rewinding are controlled by magnetic power brake, clutch, (Or controlled by auto tension controller of Mitsubishi of Japan).
3,  Each printing unit adopts 3600 plate-adjustment.
4,  IR dryer for each printing unit.(UV dryer is for option)
5,  This machine has die-cutting station, and it can make printing and die cutting finished in one process.
6,  The ink rollers will be separated from the printing roller, and keep running when the machine stopped.
7,  The main motor adopts frequency conversion stepless timing motor.
8,  The machine can finish material-feeding, printing, lighting, drying, laminating, die-cutting and rewinding in a lump.It is an ideal machine for printing note and top-grade adhesive label.

B.MAIN TECHNICAL SPECIFICATION
Printing speed                   50m/min
Printing color                  4colours
Max.Width of paper                  320mm
Max .Printing width                  310mm
Max.Unwinding diameter              600mm
Max.Rewinding diameter               600mm
Printing length                   175-320mm
Precision of chromatography       +-0.1mm
Dimensions                 2.25m*1.35m *2.4m
Machine weight                 About 2500kg
