Cable heater in straight form with many different types of sections
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | RDI or OEM | Place of Origin | China | |

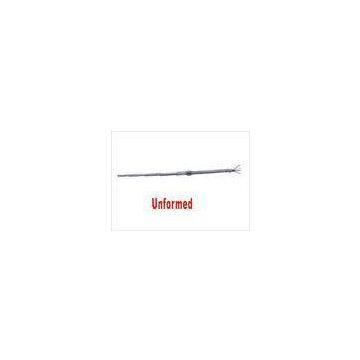

| Model Number | Cable heater unformed |
Product Description
The flexibility of mineral insulated cable heaters allows the heater to be coiled,
formed,wrapped arround pipes or used straight.It can also be cast into
metal or welded onto machine comoponent parts.Open wound coil heater can be
used as cartridge heaters in irregular size holes.
Wided used for Various occassions and? applications
* Melting process
* Mold and Dies
* Packing machinery
* Plastic injection internally heated nozzles
? molding bushings
* Plastic injection runnerless
Standard specification:
*?Section size(mm)
?? 1.φ1.6,φ1.8(Mini round cable with
??????????????? electric terminations at
?????????????????? both ends of heater)
?? 2.Square 3.5,Rectangular 4.2x2.2 and
???????????? Round φ3.2,φ4
?? 3.Other section sizes upon request
*Length:<=3000mm
*Built in thermocouple J or K
*Choice of lead orientation
*Choice of lead protection:
?????????????????? S.S armour hose or
??????????????????? S.S overbraid or others
*Formed or Coiled to customer's specifiations
*Wattage tolerance:+10%,-10%
*Shealth material:304ss
*Mininum bending Radius:
????????? three times the shealth diameter
....
