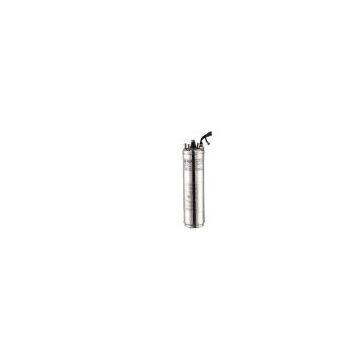

4-Inch Shield (Rewinding) Submersible Motor

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

China

Product Description

4-INCH HIGH THRUST SHIELD SUBMERSIBLE MOTOR

SINGLE-PHASE: 3-5HP 230V-60Hz;220V-50Hz
THREE-PHASE:5-10HP 200230380575V-60Hz; 220v-50Hz; 460/380v-60/50Hz

APPLICATION DATA:
These motors are built for dependable operation in 4"diameter or larger water wells, continuing work
in 30?. Rotation direction: counter-clockwise facing to axis when single-phase; motor reversal when three-phase.

FEATURES:
Nickel steel:suitable for circumstance of salt water and high PH value.
316 stainless steel: suitable for circumstance of acid, low PH value and sea water.
Oil remover:suitable for circumstance of oily well, terrestrial heat and other high temperature conditions. Contact the manufacturer with details information.
Global applicability: all standard voltage and frequency are available. Contact the manufacturer with the applicability.

BASIC FEATURES:
Corrosion-resistant exterior
Stainless steel exterior splined shaft
Hermetically-sealed windings
Anti-track self-healing resin system
Filter check valve
Water lubrication
Pressure-equalizing diaphragm
Sand fighting slinger
Self-adjusting thrust bearing
NEMA installation size

Structure materials
Components	Material
Casting	Stainless steel
Stator shell	Low carbon steel
Stator end	303 SS(3HP)
Fasteners	300 Series SS
Shaft packet	Acetal
Seal	Nitrile rubber
Diaphragm	Nitrile rubber
Diaphragm plate	304 SS
Diaphragm spring	302 SS
Diaphragm cover	304 SS
Singler	Nitrile rubber
Lead wire (or cable)	XLPE
Lead potting	Epoxy
Lead jam nut	303 SS
Filter	Delrin & Polyester

SINGLE-PHASE
50Hz,2875RPM;60Hz,3450RPM

Motor Power		Length(MM)	Weight(KG)
HP	KW	Length(MM)	Weight(KG)
3	2.2	545	21
4	3	615	24.5
5.5	4	715	28.5

THREE-PHASE
50Hz,2875RPM;60Hz, 3450RPM

Motor Power		Length(MM)	Weight(KG)
HP	KW	Length(MM)	Weight(KG)
4	2.2	545	21
5.5	3	615	24.5
7.5	5.5	715	28.5
10	7.5	770	43
