Home > Products > New product > sell spring cone crusher

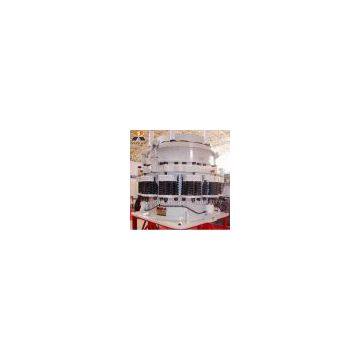

sell spring cone crusher
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
Impact Crushers are used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris. VIPEAK is a reliable supplier of Impact Crusher with new design.
 |
|
Working Principle of Impact Crusher:
When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process wont stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher.
Crusher:
|
Model |
Specification (mm) |
Feed Opening ( mm ) |
Max. Feeding Size ( mm ) |
Capacity ( t/h ) |
Power ( kw) |
Overall Dimensions (mm) (L×W×H) |
|
PF-1007 |
Φ 1000×700 |
400×730 |
300 |
35-50 |
37 |
2400×1560×2660 |
|
PF-1010 |
Φ 1000×1050 |
400×1080 |
350 |
50-80 |
75 |
2440×2250×2630 |
|
PF-1210 |
Φ 1250×1050 |
400×1080 |
350 |
70-120 |
110 |
2700×2340×2870 |
|
PF-1214 |
Φ 1250×1400 |
400×1430 |
350 |
80-160 |
132 |
2700×2440×2900 |
|
PF-1315 |
Φ 1300×1500 |
860×1520 |
500 |
160-260 |
200 |
2860×2800×3050 |
