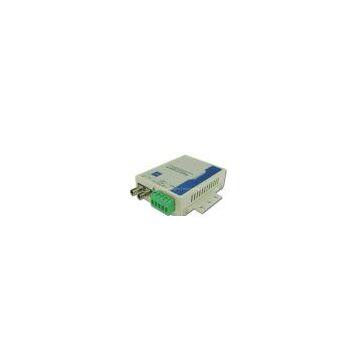

RS485/422 serial optic fiber modem
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | 3onedata | Place of Origin | China | |
| Model Number | MODEL277/B |
Product Description
The Model277/B Series converter is equipped with a multiple interface circuit that can handle RS-422/485 serial interfaces andmulti-mode or single- mode fiber. Model277/B converters are used to extend serial transmission distance up to 2 km (multi-mode fiber) or up to 20, 40, 60km (single- mode fiber). Note that the RS-422/485 interfaces cannot be used on the same Model277/B at the same time to convert to fiber.Auto Baud Rate Detection
The Model277/B Series incorporates a method for automatically detecting the serial signal baud rate by hardware. This is an extremely convenient feature for the user. Even if a devices baud rate is changed, the signal will still be transmitted through the RS-422/485 to fiber converter without any problem.
Features
1.Auto sense serial signal rate, zero delay automatic transmit
2.Adopt automatic send data control, auto distinguish and control data transfer direction
3.0-120Kbps the highest rate
4.Supply two interface (RS485/422)
5.Multi-mode 2KM, signal-mode 20KM, 40KM, 60KM
Communication
Environment
Power
Dimension
The Model277/B Series incorporates a method for automatically detecting the serial signal baud rate by hardware. This is an extremely convenient feature for the user. Even if a devices baud rate is changed, the signal will still be transmitted through the RS-422/485 to fiber converter without any problem.
Features
1.Auto sense serial signal rate, zero delay automatic transmit
2.Adopt automatic send data control, auto distinguish and control data transfer direction
3.0-120Kbps the highest rate
4.Supply two interface (RS485/422)
5.Multi-mode 2KM, signal-mode 20KM, 40KM, 60KM
Communication
| Standard | Accord RS-485, RS-422 standard |
| RS-485 signal | D+, D-, GND |
| RS-422 signal | R+, R-, T+, T-, GND |
| Fiber signal | IN, OUT |
| Working format | Asynchronism, point to point or multi-point |
| Direction control | Adopt automatic send data control , auto distinguish and control data transfer direction |
| Band rate | 0-120Kbps, auto serial band rate test |
| Fiber wavelength | Multi-mode 850nm, signal-mode 1310nm |
| Electricity port transmission | RS-485/422 port 1200M |
| Optic port transmission | Multi-mode 2KM, signal-mode 20, 40, 60KM |
| Loading | RS-485/422 port Support 32 port loop enviroment(or handtailor 128 point) |
| Interface protection | 600W surge protection, 15KV static protection |
| Electricity connector | 5 terminal block |
| Optic port connevtor | Multi-mode adopt ST/SC connector, signal-mode adopt FC/ST/SC connector |
| Working temperature | -25 to 70 |
| Storage temperature | -40 to 85 |
| Humidity | Relative humidity 5% to 95% |
|
Input power |
5-40VAC |
|
Consumption |
2W |
| L*W*H | 100mm*69mm*22mm |
| Shell | Iron |
| Color | White |
| Weight | 230g |
