Universal port-powered RS-232/485 converter
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | 3onedata | Place of Origin | China | |
| Model Number | TLC485 |
Product Description

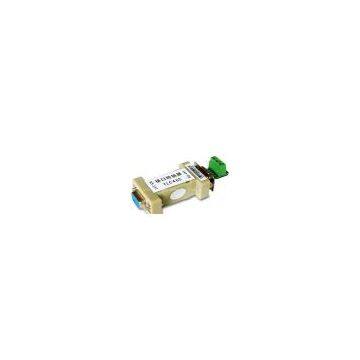

Universal port-powered RS-232/485 converter
TLC485
Products Content:
TLC485 change TD and RD RS-232 lines to RS-485 signals. All are port powered and feature Automatic Send Data Control. SDC automatically enables the RS-485 driver when data is present on the RS-232 side. Control of the driver is automatic at rates up to 115.2 kbps.It is used widely in the field of electricity, industrial automatic control, IC card billing system. It is a high quality, economical data interface conversion product.
Features
1. Plug and play, small volume, easy to installation
2.Convert RS-232 data transmit (TXD) and data receive (RXD) signal into balance half duplex RS-485 signals.
3. Powered from RS-232 handshake lines no power supply needed!
4.Point to multiple point
5. Automatic Send Data Control - no software drivers needed!
6. Auto sense serial signal rate, zero delay automatic transmit
Communication
| Standard | Accord EIA RS-232, RS-485 standard |
| RS-232 signal | TX, RX, GND |
| RS-485 signal | D+, D-, GND |
| Working format | Asynchronism, point to point or multi point, 2 wire half-duplex |
| Direction | Automatic send data control, auto distinguish and sense direction adout data transfer |
| Band rate | 300-115200bps, auto sense serial signal rate |
| Loading | Support 32 point loopback (can order 128 point) |
| Transmission | RS-485 side 1200M(9600bps), RS-232 side less than 5M |
| Port protection | 600W surge protection, 15KV static protection |
| Connector | RS-232 side DB-9 female, RS-485 side 3 terminal block |
| Working temperature | -40 to 80 |
| Storage temperature | -40 to 85 |
| Humidity | Relative humidity 5% to 95% |
|
Input powered |
No power supply needed, powered from TXD, RTS, DTR signal in RS-232 port |
|
Consumption |
Static consumption less than 10mA,dynamic consumption less than 40mA |
| L*W*H | 90mm*33mm*16.5mm |
| Shell | Plastic |
| Color | White |
| Weight | 40g |
