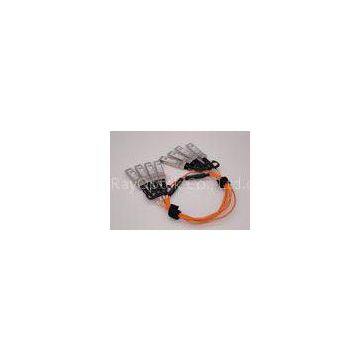

OM2 40G Active Cable Ethernet Transmission 4xSFP+ 5M Breakout AOC

Brand Name	RayOptek		Place of Origin	China
Model Number	RA-B40N05-C00

Delivery Time:ASAP
Certification:CE,FCC,ROHS

OM2 Cable 40G Active Cable Ethernet Transmission 4xSFP+ 5M Breakout AOC

Specifications

?Model Number: RA-B40N05-C00 ?Application: 10G Ethernet ?Connector: AOC ?Product: 4xSFP+ to 4xSFP+ Breakout Cable ?Datarate: 10Gb/s ?Transceiver Type: SFP+ ?Length: 5m ?Operating Temperature:0 to +70°C

Features

Each SFP+ end:

? Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module ? Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF” ? Maximum power dissipation 0.35W per end.

Active Optical Cable Assembly:

? 0 to 70 C degree case temperature operating range ? Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and Rayoptek PIN receiver ? Hot pluggable for ease of servicing and installation ? Two Wire Serial interface ? Utilizes optical fiber for high density and thin, lightweight cable management

Applications

? 10GbE break-out applications for Datacom switch and router connections ? 4×10G to 4×10G density applications for Datacom and Proprietary protocol applications ? Datacenter

Order Information

P/N	RA-B40N05-C00
Data rate	10G/ps
Length	5m
DDM/DOM	YES
Connector	AOC
Application	10G Ethernet
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V
Brand	RayOptek

Description

The Rayoptek Technologies RA-B40N05-C00 is 4× SFP+ to 4× SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 4× 10G to 4× 10G applications.

This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 4× 10G aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.

This AOC incorporates Rayoptek Technologies' proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
