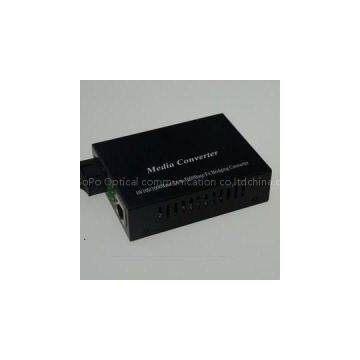

1000M-Media Converter

Place of Origin	China

DescriptionFM-2100 series Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards,Website: , and supports two types of media network connections:? 1000Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 1000Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 80km via fiber optical cables. It supports transmission in multi-mode dual fiber, single-mode dual fiber, single-mode single fiber.Features? Supporting inter-conversion between 1000Base-T and 1000Base-SX? Supporting full-duplex and half-duplex and its auto-sensed? Supporting automatic cross connection of twisted pair interfaces, facilitating?? system? commissioning and installation? Supporting the transmission of extra-long VLAN packets? Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets? Supporting STP to form a redundant networkApplications? 1000Mbps fast optical Ethernet long-distance transmitting networkPerformance SpecificationsParameterSpecificationsAccess mode1000Mbps Gigabit EthernetStandardIEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning TreeWavelengthMulitmode:850/1310nm; Single-mode:1310/1550nm (Option)DistanceCategory-5 twisted pair: 100mFiber:multi-mode 50/125,62.5/125μm（the max distance up to(220m or 550m）Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm（the max distance up to 20 -80km）PortOne RJ45 port:For connecting STP/UTP category-5 twisted pairsOne optical port:Multi-mode, dual fiber: SC ?(50, 62.5/125μm)Single mode, dual fiber: SC or FC (9/125μm)Single mode Single fiber: SC or FC (9/125μm)Conversion meansMedia conversionMAC address table1KBuffer space512kbitFlow controlFull duplex: flow control;Half duplex: back pressureDelayStore-and-forward: 9.6μs; cut-through: 0.9μsBER<19-9MTBF100,000 hoursLED indicatorPWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding)Power supplyDC5V 1A (external), AC220 0.5A/DC-48 (internal)Power consumption5WOperating temperature-10~55oCOperating humidity5%~90%Maintaining temperature-40~70oCMaintaining humidity5% ~ 90% non-condensingDimensionsExternal power supply: 26mmx 71mm x 94mmInternal power supply: 40mm x 110mm x 140mOrdering InformationModelwavelengthFiberTX portFiber ModeTX power (dBm)RX Sen.(dBm)DistanceFM-2100-SR850nmSC/STRJ-45MM,Duplex-17~-12≤-20.0550mFM-2100-L21310nmSC/FCRJ-45SM, Duplex-3~-8≤-23.020kmFM-2100-L41310nmSC/FCRJ-45SM, Duplex-3~-0≤-25.040kmFM-2100-L61310nmSC/FCRJ-45SM, Duplex>1≤-27.080kmFM-2101-L2AT1310/R1550SCRJ-45SM,BI-DI-8~-3≤-23.020kmFM-2101-L2BT1310/R1550SCRJ-45SM,BI-DI-8~-3≤-23.020kmFM-2101-L4AT1310/R1550SCRJ-45SM,BI-DI-3~0≤-23.040kmFM-2101-L4BT1550/R1310SCRJ-45SM,BI-DI-3~0≤-23.040kmFM-2101-L6AT1490/R1550SCRJ-45SM,BI-DI-3~0≤-23.060kmFM-2101-L6AT1550/R1490SCRJ-45SM,BI-DI-3~0≤-23.060kmPDF1000M-Media Converter
