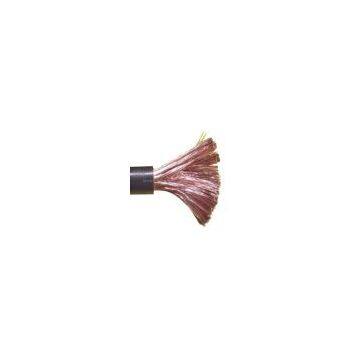

Welding Cable(GB 5013-93)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
1. Service Conditions
This welding cable is suitable for the welding mechine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2. Model,Names and Work In the Temperature(See Table 1)
|
Model |
Name |
Working Temperature of Core≤(oC) |
|
YH |
Natural Rubber Sheath for Welding Cable |
65 |
|
YHF |
Horoprene Rubber or Other Syntheitic Sheath Welding Cable |
65 |
3. Specifications,Size,Weight and Technical Data(See Table 2)
|
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm) |
20oC Conductor Resistance≤(Ω/km) |
Reference Weight(kg/km) | ||
|
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF | |||
|
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153.51 |
|
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
|
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
331.15 |
|
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
|
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
610.55 |
|
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817.52 |
|
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
1102.97 |
|
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348.25 |
1392.55 |
|
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678.5 |
1698.72 |
|
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983.8 |
2020.74 |
4. Delivery Requirements
If welding cable is packed in circle,its length should be 100m long.If it is packed in bundle,its length should be no less than 100m.The short welding cable which are no less than 20m are permissible to delivery.The quantity of short welding cable should be no more than 10% of the whole delivery.If mutual agreement is made,everything will be done according to the agreement.
