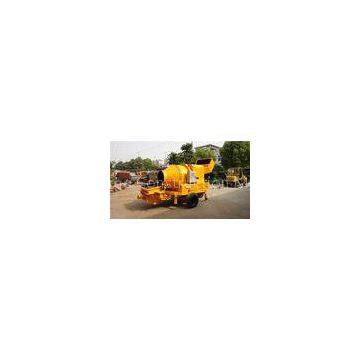

Small Portable Cement Mixer , Concrete Mixer With Pump 180800mm Cylinder
- T/T L/C D/P D/A
- 7 days
You May Like
-
HBT1508 Batching Machine Concrete Pan Mixer 100 Or 125mm Pipe Diameter
-
Precast Plant Concrete Mixer With Pump Equipment 400mm Hopper 4000KG
-
ZL08 Mini Concrete Mixer HBT0804 Loads Stone Sand 200L Hopper By Men
-
3000kg Weight Mini Concrete Mixer Mini Mixer Machine Drived By ZL10 Loader
-
Portable Mini Mixer Mini Concrete Mixer Pumping Machine One Operater
-
Trailer Mini Portable Cement Mixer 2M Upper Slope After The Expansion
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
HBT1508 ?Concrete Mixer With Pump Has The Batching Machine To Get Good Quality
Electric concrete mixer with pump performance parameters
|
Item |
Unit |
HBT2006/JZC350 |
|
Theoretical Output |
m3/h |
20 |
|
Max. Pressure on Concrete |
MPa |
6 |
|
The type of distribution valve |
S tube valve |
|
|
delivery cylinder |
mm |
180×800 |
|
main oil cylinder |
mm |
Φ90/Φ65×800 |
|
Oil tank capacity |
L |
250 |
|
Outlet opening diameter |
mm |
Φ150 |
|
Inner dia. of delivery pipe |
mm |
Φ125 |
|
Motor power |
KW |
22+7.5+0.75=30.25 |
|
Max. diameter of aggregates |
mm |
40 |
|
Pulling speed |
Km/h |
≤8 |
|
Maximum delivery Horizontal distance |
M |
150 |
|
Maximum delivery Vertical distance |
M |
30 |
|
Mixer Type |
TOPLL |
JZC350 |
|
Capacity of charge Hopper |
L |
350 |
|
Capacity of discharge Hopper |
L |
560 |
|
Piston of charge Hopper |
Φ80/Φ50×600 |
|
|
Diameter of drum |
mm |
1440 |
|
Drum rotary speed |
rpm |
15 |
|
Charge hopper load up time |
s |
6 |
|
Charge hopper unload down time |
s |
4 |
|
mixing time |
s |
45-60 |
|
Tread distance |
mm |
2250 |
|
length ×width ×height |
mm |
5500×2300×2700 |
|
Weight |
Kg |
4500 |
Description:
The high median tank layout, oil flow into the hydraulic pump itself, to avoid the lack of oil to demad oil pump, high reliability.
Applications:
Concrete mixer with pump is suitable for all kinds of dispersed locations, less construction, longer distance from site to commodity concrete agitate plant. For example: 10 layer below the group main building structure, building and underground garage floor, civil construction of inclined roof, small bridges, tunnels, water conservancy slope, small river locks and boat lock, electric power communication tower base, small wharf, mine construction, concrete roadway maintenance field sites scattered, engineering the quantity is less, the commodity concrete batch plant is not willing to do or they do not economic construction, concrete construction project site mixed.
Competitive Advantage:
there is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
