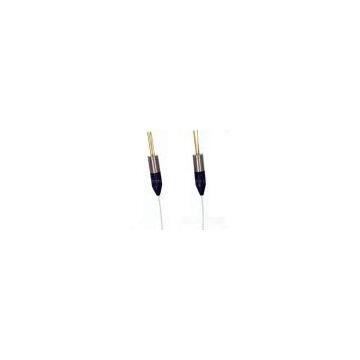

1470-1610nm 1.25G DFB Laser Diode With Pigtail
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | JIUZHOU | Place of Origin | China | |
Product Description
Category:Coaxial Pigtail Laser Diode
Comment:
Features：
● 8-wavelength: 1470/1490/1510/1530/1550/1570/1590/1610 nm
● High reliability, long operation life
● 0oC~+70oC operation
● Single frequency operation with high SMSR
● Build-in InGaAs monitor
Applications:
OC-3, OC-12 and Gigabit CWDM Optical communication system
Description:
SCL series are CWDM MQW-DFB laser diodes that provide a durable, single frequency oscillation with emission wavelength at 1470/1490/1510/1530/1550/1570/1590/1610nm.
|
parameter |
symbol |
limiting value |
unit |
|
LD Forward current |
If(LD) |
Ith+40DC 2 |
mA |
|
LD Reverse voltage |
Vr(LD) |
2 |
V |
|
PD Operating current |
If(PD) |
2 |
mA |
|
PD Reverse voltage |
Vr(PD) |
20 |
V |
|
Operating temperature |
Topr |
-20～+65 |
℃ |
|
Storage temperature |
Tstg |
-40～+85 |
℃ |
|
Lead soldering temperature/ time |
Tsld |
260/10 |
℃/s |
Technical parameters：
|
Parameter |
symbol |
min |
type |
max |
unit |
Test conduction |
|
Optical output power |
P0 |
|
2 |
|
mW |
If=Ith+20mA |
|
Threshold current |
Ith |
|
10 |
|
mA |
CW |
|
operation current |
If |
|
|
40 |
mA |
CW |
|
Operation voltage |
Vop |
|
1.1 |
1.5 |
V |
If =IOP |
|
Spectral width |
Δλ |
|
0.1 |
1 |
nm |
CW，P0 |
|
Central wavelength |
λc |
1467 |
1470 |
1473 |
nm |
If =IOP |
|
1487 |
1490 |
1493 | ||||
|
1507 |
1510 |
1513 | ||||
|
1527 |
1530 |
1533 | ||||
|
1547 |
1550 |
1553 | ||||
|
1567 |
1570 |
1573 | ||||
|
1587 |
1590 |
1593 | ||||
|
1607 |
1610 |
1613 | ||||
|
Rise time/fall time（10-90%） |
Tr/Tf |
|
0.3 |
0.5 |
ns |
If =I |
|
Monitor current |
Im |
|
0.3 |
|
mA |
If =IOP |
|
PD terminal capacitance |
CPD |
|
|
10 |
pF |
If =I |
|
Relative noise intensity |
RIN |
|
-140 |
|
dB/Hz |
If=IOP |
|
IMD3 |
|
|
-62 |
|
dB |
T=25℃ OMI=0.2 Doul f1=936MHz
f2=958MHZ |
|
IMD2 |
|
|
-54 |
|
dB | |
|
Side mode suppression ratio |
SMSR |
30 |
|
|
dB |
|
|
Cut-off frequency |
fc |
|
1.25 |
|
GHz |
|
Note: 1,testing humidity is 25℃
2,when operate in pulse situation, there isn’t exceeding to Max. driving current.
Package dimensions:Unit:mm
Pin package drawing:
Ordering information:
