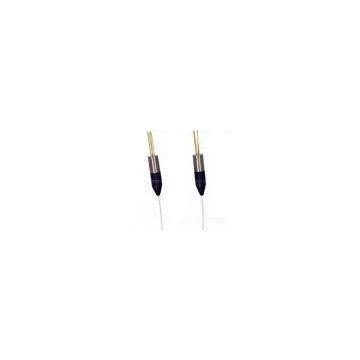

1550nm 1.25G FP Digital Laser Diode With Pigtail
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | JIUZHOU | Place of Origin | China | |
Product Description
Category:Coaxial Pigtail Laser Diode
Comment:
Features：
● Uncooled 1550nm Fabry-Perot MQW Laser Diode,Built-in InGaAs PD Monitor
● High-Speed Operation Up to 1.25Gbps
● Wide Operating Temperature Range: -40℃-+85℃
● Laser Welding Assembly Method：
● High Reliability and Long Operation Life
● Various Connector Type: SC, FC, ST,LC,MU
Applications：
● Transceiver Module
● Data Communication
● Telecommunication
● Gigabit Ethernet
Absolute Maximum Rating：
|
limiting parameter |
symbol |
value |
unit |
|
LD Forward current |
If(LD) |
Ith+40 DC2 |
mA |
|
LD Reverse voltage |
Vr(LD) |
2 |
V |
|
PD Operating current |
If(PD) |
2 |
mA |
|
PD Reverse voltage |
Vr(PD) |
20 |
V |
|
Operating temperature |
Topr |
-20～+65 |
℃ |
|
Storage temperature |
Tstg |
-40～+85 |
℃ |
|
Lead soldering temperature/ time |
Tsld |
260/10 |
℃/s |
Technical parameters：
|
Parameter |
symbol |
min |
type |
max |
unit |
Test conduction |
|
Optical output power |
P0 |
|
0.5 |
|
mW |
If=Ith+20mA |
|
Threshold current |
Ith |
|
10 |
|
mA |
CW |
|
operation current |
If |
|
|
40 |
mA |
CW |
|
Operation voltage |
Vop |
|
1.1 |
1.5 |
V |
If =IOP |
|
Spectral width |
Δλ |
|
2 |
4 |
nm |
CW，P0 |
|
Central wavelength |
λc |
|
1550 |
|
nm |
If =IOP |
|
Rise time/fall time（10-90%） |
Tr/Tf |
|
0.3 |
0.5 |
ns |
If =I |
|
Monitor current |
Im |
|
0.3 |
|
mA |
If =IOP |
|
PD terminal capacitance |
CPD |
|
|
10 |
pF |
If =I |
|
Cut-off frequency |
fc |
|
1.25 |
|
GHz |
|
Note: 1,testing humidity is 25℃
2,when operate in pulse situation, there isn’t exceeding to Max. driving current.
Package dimensions:Unit:mm
Pin package drawing:
Ordering information:
