Home > Products > centrifugal pump > TPOW Volute Split Casing Double Suction Pump

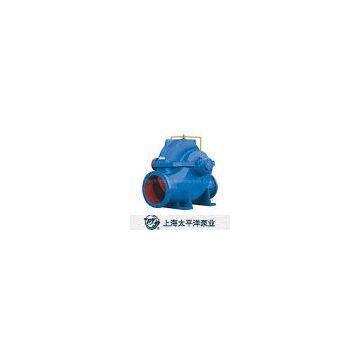

TPOW Volute Split Casing Double Suction Pump

FOB Price

USD $10000 - $10000 / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Introduction:
TPOW series single-stage double-suction split volute centrifugal pump is produced by our company based on importing the advanced technology from Germany in accordance with the market demand. By using the original and modified impeller and cutting, the pump boasts a full and wide range of spectrum and high service efficiency. The water pump can provide the working points of any flow and lift head required by the user within the spectrum performance range. TPOW pump adopts a hydraulic model with the self-balancing axial force and radial force, which is the best both at home and abroad currently. It boasts stable performance ,high efficiency, compact structure,small vibration,strong resistance to pressure of pump body and being easy for installation and maintenance.

Main Purpose :

TPOW series of product is widely used for water plant, irrigation ,drainage pumping station, power station, water circulation of air-conditioning, industrial water supply system, fire system and shipping industry as well as for the general purpose in the oil refining industry.

Pump Type 　 Flow Flow Lift head Rotation speed Motor power 　 Pump Type 　 Flow Flow Lift head Rotation speed

　　 m3/h) (L/s) (m) (r/min) (kw) 　　　 m3/h) (L/s) (m) (r/min)

TPOW150-280(I) 　 443.5 123.2 21 1480 37 　 TPOW350-380(I) 　 1733 481.4 32 1480

　 A 410.6 114 18 　 30 　　 A 1692 470 26.5 　

　 B 367 101.9 15 　 22 　　 B 1641.6 456 21 　

　 C 338.2 93.9 11.5 　 18.5 　　 C 1602 445 15 　

TPOW150-280 　 397 110.3 20.4 1480 30 　 TPOW350-380 　 1424 395.6 31 1480

　 A 362.4 100.7 17 　 30 　　 A 1335.6 371 26.3 　

　 B 340.7 94.6 14.5 　 22 　　 B 1270.8 353 22.5 　

　 C 318.1 88.4 11.5 　 18.5 　　 C 1188 330 17.8 　

TPOW150-350(I) 　 447.5 124.3 38 1480 75 　 TPOW350-440(I) 　 2745 762.5 43.5 1480

　 A 404.2 112.3 31 　 55 　　 A 2635.2 732 35 　

　 B 363 100.8 25 　 37 　　 B 2563.2 712 27.5 　

　 C 324.7 90.2 20 　 30 　　 C 2484 690 21.5 　

TPOW150-350 　 407.5 113.2 35 1480 55 　 TPOW350-440 　 2235 620.8 42.5 1480

　 A 374.1 103.9 29.5 　 45 　　 A 2088 580 36 　

　 B 344.4 95.7 25 　 37 　　 B 1987.2 552 30 　

　 C 311.9 86.6 20.5 　 30 　　 C 1847.6 516 25 　

TPOW150-450(I) 　 515.5 143.2 66 1480 132 　 TPOW350-520(I) 　 2610 725 70 1480

　 A 468.4 130.1 54.5 　 110 　　 A 2430 675 60 　

　 B 418.5 116.3 43.5 　 75 　　 B 2232 620 50 　

　 C 375.4 104.3 35 　 55 　　 C 2070 575 38 　

TPOW150-450 　 440 122.2 60 1480 110 　 TPOW350-502 　 2450 680.6 67 1480

　 A 401.7 111.6 50 　 90 　　 A 2268 630 59.5 　

　 B 359.3 99.8 40 　 75 　　 B 2088 580 50 　

　 C 326.3 90.6 33 　 45 　　 C 1944 540 41.5 　

TPOW150-570(I) 　 584 162.2 105 1480 250 　 TPOW350-640 　 2160 600 126.2 1480

　 A 536.2 148.9 88.5 　 200 　　 A 2000 556 116 　

　 B 493.6 137.1 75 　 160 　　 B 1920 533.3 106 　

　 C 450 125 61.5 　 132 　　 C 1830 508.3 95.6 　

TPOW150-570 　 537 149.2 90 1480 200 　　 D 1695 470.8 83 　

　 A 499.9 138.9 78 　 160 　 TPOW400-550(I) 　 2635 731.9 86 1480

　 B 468.5 130.1 68.5 　 132 　　 A 2520 700 79 　

　 C 419.2 116.4 57.5 　 110 　　 B 2418 671.6 71.8 　

TPOW200-340(I) 　 695.5 193.2 30 1480 75 　　 C 2311.5 642 64 　

　 A 641.2 178.1 25.5 　 75 　　 D 2235.6 621 57.8 　

　 B 586 162.8 21.3 　 55 　 TPOW400-550 　 2190 608.3 63.8 1480

　 C 530 147.2 17 　 37 　　 A 2045.5 568.2 57.8 　

TPOW200-340 　 638 177.2 28 1480 75 　　 B 1882 522.7 51.2 　

　 A 596.8 165.8 24.5 　 55 　　 C 1767.6 491 45 　

　 B 552.5 　 21 　 45 　 TPOW400-600 　 2502 695 90.2 1480

　 C 497.1 　 17 　 37 　　 A 2422 672.7 81.8 　

TPOW200-410(I) 　 710 197.2 52 1480 132 　　 B 2354 654 74 　

　 A 641.9 178.3 42.5 　 110 　　 C 2225.5 618.2 68 　

　 B 586.6 163 35.5 　 90 　　 D 2127.6 591 59.8 　

　 C 525.6 146 28.5 　 75 　 TPOW400-600(I) 　 3176.5 882.4 113 1480

TPOW200-410 　 649 180.3 48 1480 110 　　 A 3007 835.3 103.6 　

　 A 594.1 165.6 40.5 　 90 　　 B 2922.4 811.8 93 　

　 B 550.2 152.8 34.5 　 75 　　 C 2732 758.8 83.7 　

　 C 495.7 137.7 28 　 55 　　 D 2641.6 706 74 　

TPOW200-530(I) 　 818 227.2 91 1480 280 　 TPOW500-520(I) 　 3217.5 893.8 25 980

　 A 750 208.3 76.5 　 250 　　 A 3088 857.8 23 　

　 B 687.9 191.1 62.5 　 200 　　 B 2964.5 823.3 21 　

　 C 630 175 47.5 　 132 　　 C 2846 790.6 18.4 　

TPOW200-530 　 735 204.2 81.7 1480 250 　　 D 2732 758.9 16.3 　
