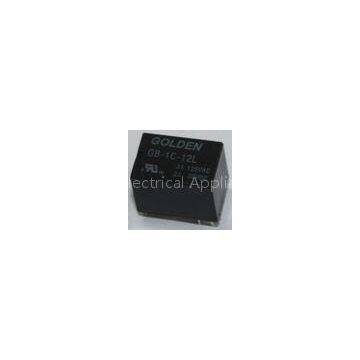

Electromagnetic Miniature 24V 2A Signal Relay For Electrical Control Board
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 Pin Mini Signal Relay GB HM4100F 3A 12V Intelligent Home Appliance Relay
-
GN SPA T76 HF7520 16A 12 Volt Low Voltage Relay 1 Form A Configurations
-
10 Amp Power Control Relay GA-1P JQX-14FF for Home Appliances
-
Universal Type Golden Automobile Relays , High Frequency Relay
-
GYD SARB HFKP Industry Standard Miniature Power PCB Relay 5A 250VAC
-
Blue GT-1A-12D 25A 12 Volt 2 Pin Relay Environmental Friendly Custom
Product Details
| Brand Name | GOLDEN | Place of Origin | China | |
| Model Number | Signal Relay GB-2 HM4101F SYS1K 3A 12V black (3A/250VDC ) 0.36-0.8W 5-48VDC SPST/SPDT -40~85C |
Product Description
Electromagnetic Miniature 24V 2A Signal Relay For Electrical Control Board
Quick Details:
3A switching capability 1Form A and 1 Form C configurations Subminiature standard PCB layout Plastic sealed and flux proofed types available Class F&Class B insulation system Environmental friendly product(RoHs compliant)Description:
Signal Relay GB-2 HM4101F SYS1K 3A 12V black (3A/250VDC ) 0.36-0.8W 5-48VDC ?SPST/SPDT -40~85C
Applications:
Home appliances?air conditional heater etc Intelligent Home ApplianceSpecifications:
|
Resistive load |
3A 125VAC |
|
Max. switching current |
3A |
|
Max. switching voltage |
125VAC |
|
Max. switching capacity |
375VA |
|
Contact material |
Silver alloy |
|
|
Contact resistance |
100mΩMax. |
|
|
Operate time |
5ms Max. |
|
|
Release time |
5ms Max. |
|
|
Insulation resistance |
100 MΩ Min.(DC500V) |
|
|
Dielectric strengh(1) |
Between open contact? :AC500V, 50/60Hz 1min. |
|
|
Between contact and coil: AC750V, 50/60Hz 1min. |
||
|
Vibration resistance |
Operating extremes |
10～55Hz,amplitude 1.5 mm |
|
Damage limit |
10～55Hz,amplitude 1.5 mm |
|
|
Shock resistance |
Operating extremes |
10G |
|
Damage limits |
100G |
|
|
Life expectancy |
Mechanical |
10,000,000 operations ?(frequency 18,000 operations/h) |
|
Electrical |
3A 125VAC:100,000 operations (frequency 1,800 operations/h) |
|
|
Operating ambient temperature |
-30℃～+70℃(No condensation) |
|
|
Weight |
Approx. 3.5g |
