One Port Vertical RJ45 Connector , POE RJ45 Connector With Single Yellow Led And Tab-Up Shielded
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 Port 90 Degree RJ45 With LED And Shielded , 8P8C Side Enter Gold Plating
-
Side Entry Vertical RJ45 Jack Integrated 10 / 100 / 1000 Magnetics
-
Shield RJ45 Ethernet Jack 10 / 100 / 1000 Ethernet Interface Tab up Modular Jack
-
Full Shielded RJ45 Ethernet Jack 8P8C Single Port Modular With Transformer
-
Full Plastic RJ45 Single Port 8P8C With LED Gold Plated Network
-
10 / 100 / 1000 Base - T Low Profile RJ45 Jack Integrated Magnetic Connector Modules
Product Details
| Brand Name | PHC | Place of Origin | China | |
| Model Number | 1051-208050 |
Product Description
Certification:ISO9001 : 2008 , SGS , RoHs , UL

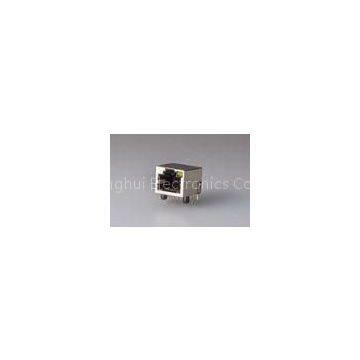

90 Degree RJ45 ?One Port ?With Single Yellow Led And Tab-Up Shielded?
Specifications
|
Connector Type |
Jack |
|
Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
|
Number of Ports |
1 |
|
Number of Rows |
1 |
|
Mounting Type |
Through Hole |
|
Orientation |
90° Angle (Right) |
|
Termination |
Solder |
|
Shielding |
Shielded, EMI Finger |
|
Ratings |
Cat3 |
|
Features |
Board Lock |
|
LED Color |
No |
|
Tab Direction |
Up |
|
Contact Material |
Copper Alloy |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
Flash |
|
Housing Material |
Thermoplastic |
MECHNICAL:
1. Durrability:750 cycles min.
2. PCB Retentton PRE-SOLDER:1 LB min.
ENVIRONMENTAL:
1. Storage:-40℃ TO +85℃.
2. Operatton:0℃ TO 70℃.
?
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
MATERIAL:
1. Housing Material:glass filled polyester(UL94V-0).
2. Contact Material:phosphor bronze φ0.46mm (C5 100).
3. Plating:glod plating over nickel.
4. SHIELD COPPER ALLOY(OR STEEL ALLOY):0.20mm thickness plating NI.
5. LED:option.
ELECTRICAL:
1. VOLTAGE RATING:125 vac rms.
2. CURRENT RATING:1.5 amp.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
? ? RESISTANCE:1000V AC rms 50Hz. 1min.
6. LED RATINGS:forward voltage:2.2 volts typical.
? ? reverse voltage:5 volts maximum.
Drawing
90 Degree RJ45 ?One Port ?With Single Yellow Led And Tab-Up Shielded?
( PHC )
Why Choose PengHui
Quality :
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .
|
? Manufactured?under?strict?controls |
? RoHS?compliance |
|
? ISO?9001:2008 |
? OEM??for?PULSE |
|
? UL?Certification |
? Active?Environmental?policy |
|
? Reach?Cetitifaction |
?Every?module??tested?3times??(not?just?batch?tested) |
Unit?Price
?
Charge?only?35% ~ 60%?of?Pulse?, Wurth(Midcom),?Bothhand?Belfuse,?Tyco,?Halo,....Etc
?
| All?the?step?are?doing?by?ourself.?So?we?can?control?the?cost? |
| PHC?have?more?than?30?units?automation?equipments?to?product?as?possible |
| PHC?consists?of?3?subordinations?,?located?partly?in??Hunan?,Hubei?,Guangdong . |
| With?large?scale?of?production?lines,?we?can?reach?to?cost?reduction?at?the?most?extent |
| ? |
Production&Testing?
?
| PHC?have?more?than?30?units?automation?equipments?to?product?as?possible |
| PHC?Every??Magnetic?RJ45?tested?3times??(not?just?batch?tested) |
|
PHC?Every?SMT?part?used?Automation?testing?and?packing. |
Service
?
PHC?Offer?good?pre-sales?&?after-sales?service?&Strong?technical?support
| New?Project:?Strong?technical?and?ideal?support?your?new?design |
|
Existing?projects:?Try?to?help?customer?to?save?the?cost?to?offer?the?good?quality?product and?save?time. |
| Free?Samples: 3-5?PCS?of?each?part?number. |
| Shipping?Fee?: We?can?get?80%?off?from?DHL/UPS/TNT/FedEx,?keeping?safe?and?fast. |
| Customer?complaint: 24-48?hours?reply?8D?report. |
|
Warranty?:?24?months?(?Merchandise?are?promised?to?be?promptly?returned,?replacement, or?repair?kits ,?if?customers?are?not?satisfied) |
