Home > Products > Vertical Packing Machine > packaging machine
packaging machine
- 50 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | chuanhe | Place of Origin | China | |

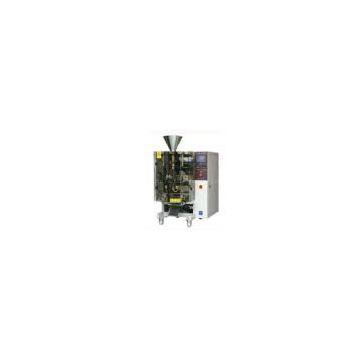

| Model Number | CH-220 large vertical packing machine |
Product Description
| Item No. | CH-220 |
| Air consumption | 2.5m3/min 6kg/cm2 |
| Max. Film width | Max.420mm |
| Bag length | 80-300mm |
| Bag width | 80-200mm |
| Max. extend diameter of coiled material | Max.360mm |
| Packing speed | 5-40bag/min |
| Packing thickness | 0.04-0.08mm |
| Power supply specification | 220V,50/60Hz,2.4KAV |
| Total weight of machine | 450kg |
Function and structure characteristics
1.The imported programmable controller , servomotor , super large display touchable screen are the driving and control center of this machine . The machine is featured with good performance , simple operation .
2.The machine and metering device can finish auto all packaging processes , i.e. measuring , feeding , filling and bag making , date-printed , finished product transfer .
3.Auto-alarm protection function can reduce the waste to the min and assist the operator to remove the faults in time.
4.The machine adopts intelligent temperature controller , which can guarantee the top seal looked good and smooth.
5.The machine can produce also pillow-shaped bag and hole lug bag .
This machine can be equipped with following devicesElectronic weighing system , semi auto feeding device , spiral type powder measuring device and cup measuring device.
Scope or Application
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
