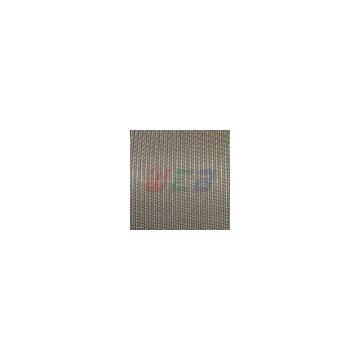

Stainless woven cloth

Stainless woven cloth

Stainless woven cloth performance

Uniform weave

flat easy to use

of intensity of load

high precision of filtering

acidproof , alkali-resisting

high temperature , pulling force and wear

Stainless woven cloth usaged

industry filters

produce filter wire mesh

filter discs and Filter Cylinders

three layer filter wire mesh

Stainless woven cloth standard

GB/T 20878-2007

Stainless woven cloth basic information

Mesh =25.4/w+d

Opening=w/(w+d )² X100%

Weight =w*w*mesh*0.5*Length*width

How to order stainless woven cloth

For Example :

AISI 304(316) mesh 100X100

wire diameter 0.10mm ,size 1mX100’,quantity :10rolls

standard rolls Length

are 30.5m(100ft),special order 15m(50ft),60m(196ft),100m(327ft)

width is 0.914m(3ft),1m,1.22m(4ft),1.5m(5ft), 2m(6ft)

special order 2.5m(8ft),3m(10ft),4m(13ft),6m(19ft),8m(27ft)

Stainless woven cloth weaving tape

plain weaving  3-300 mesh

Twill weaving  20-635mesh

Three heddle weave mesh  60X40,24X18,50X30,80X60mesh

Five heddle twilled weave mesh  15X13 to 132X85 mesh

plain dutch weave mesh  12X64mesh to 50X250mesh

twill dutch weave mesh   24X220 mesh to 400X2800 mesh

Reverse dutch plain weave  66X18 to 1005X200 mesh

Reverse dutch twilled weave  72X15 to 400X120 mesh

Details see the website
