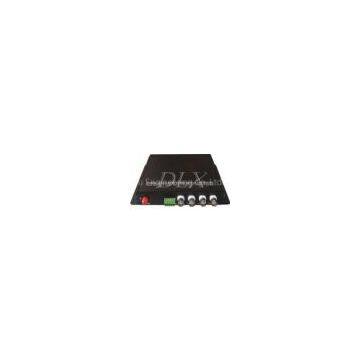

Economical Digital Video/Audio/Data Fiber Optical Transmitter and Receiver

BRIEF INTRODUCTION

DLX-DVOP-E series of products provide uncompressed high quality transmission systems for 1~32channels of digitalized analog video, up to one channels of single-direction PTZ data(or two channels single-direction MONO audio/one channel bi-direction MONO audio/one channel single-direction stereo audio) over one single mode or multimode optic fiber.

The various types of DLX-DVOP-E products can meet different user’s demands. Adopting advanced digital fiber optic transmission technologies, DLX-DVOP-E devices can be installed rapidly without customer adjusting, and they are easy to operate and maintain. There are two types of DLX-DVOP-E available: standalone and card type.

APPLICATIONS

● High Way & Toll Station Surveillance
● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● One multimode or single mode fiber

● 19inch,1U height, Modularized and industrialized design ensuring reliability and flexibility

● Large capacity of gigabit optical fiber transmission allowing of easy upgrade

● 10 digit coding and non-compression video transmission

● Large-scale Proprietary IC Core

● Auto PAL/NTSC/SECAM Compatible
● Support 24bits DVD format, High Dynamic Range video and Stereo audio

● Multi-services Flexible Configuration on the Same Platform

● Indicators for Power Supply, Video, Optic-link and Data-loop

● Free from In-field Adjustment

● Flexible and Easy Mount

● Protection against lightening strike and surge

● Transmission distance: 2KM(multi-mode),20km,40km,60km,80KM,100km optional(Single-mode)

SPECIFICATIONS

● Video

Channel : 1-32

Connector: BNC

Bandwidth: 8MHz

Quantization: 10 bits

DG: 1% typical

DP: 1 typical

SNR: >67dB

● Audio

Audio Input/output impedance: 1000ohm(unbalanced)

Digitization: 24bit

Bandwidth: 20Hz to 20KHz

Nonlinear distortion coefficient: ≤ 1%

SNR: >85dB

Connector: Terminal Plug with screw clamps/RCA

● Data

Interface Type: RS-232/485/422, Manchester, Biphase

Operation Mode: Full-duplex/Half-duplex

Date Rate: DC-384Kbps/DC-2Mbps

BER: <10E-9

Connector: RJ45/ Terminal Plug with screw clamps

● Environmental

Operation temperature: -30℃~+75℃

Storage temperature: -40℃~+85℃

Relative humidity: 0-95% Non-Condensing

MTBF: ≥10e5 hours

Power Supply: AC 100V~260V or DC 48V

● Level 3 Anti-lightning, TI chip, Industry grade components , ESD protection design
