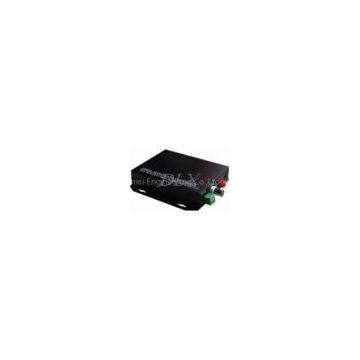

MINI Digital Video/Audio/Data Fiber Optical Transmitter and Receiver

The various types of DLX-DVOP01M products can meet different user's demands. Adopts advanced digital fiber optic transmission technologies, DLX-DVOP01M devices can be installed rapidly without customer adjusting, and they are easy to operate and maintain. On the front panel of the products are video connector (BNC), audio and data connector (RJ45 or Terminal Plug with screw clamps), and fiber optic connector (FC-single mode or SC-multimode). Users can easily monitor the status of power supply, connection and channels by the indicator lights. There are two types of DLX-DVOP01M available: standalone and card type.

APPLICATIONS

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● One multimode or single mode fiber

● Modularized and industrialized design ensuring reliability and flexibility

● Large capacity of gigabit optical fiber transmission allowing of easy upgrade

● 10 digit coding and non-compression video transmission

● Large-scale Proprietary IC Core

● Auto PAL/NTSC/SECAM Compatible

● Support 24bits DVD format, High Dynamic Range video and Stereo audio

● Multi-services Flexible Configuration on the Same Platform

● Indicators for Power Supply, Video, Optic-link and Data-loop

● Free from In-field Adjustment

● Flexible and Easy Mount

● Protection against lightening strike and surge

● Transmission distance: 2KM(multi-mode),20km,40km,60km,80KM,100km optional (Single-mode)

SPECIFICATIONS

● Video

Channel : 1

Connector: BNC

Bandwidth: 8MHz

Quantization: 10 bits

DG: 1% typical

DP: 1 typical

SNR: >67dB

● Audio

Audio Input/output impedance: 600ohm(balanced) or 1000ohm(unbalanced)

Digitization: 24bit

Bandwidth: 20Hz to 20KHz

Nonlinear distortion coefficient: ≤ 1%

SNR: >85dB

Connector: Terminal Plug with screw clamps/RCA

● Data

Interface Type: RS-232/485/422, Manchester, Biphase

Operation Mode: Full-duplex/Half-duplex

Date Rate: DC-384Kbps/DC-2Mbps

BER: <10E-9

Connector: RJ45/ Terminal Plug with screw clamps

● Environmental

Operation temperature: -30℃~+75℃

Storage temperature: -40℃~+85℃

Relative humidity: 0-95% Non-Condensing

MTBF: ≥10e5 hours

Power Supply: AC 100V~260V

● Level 3 Anti-lightning, TI chip, Goldplated PCB board (optional), All Industry grade components , ESD protection design

● Physical Dimensions: 135(L) x 110(W) x 25(H)mm , Aluminum-alloy case
