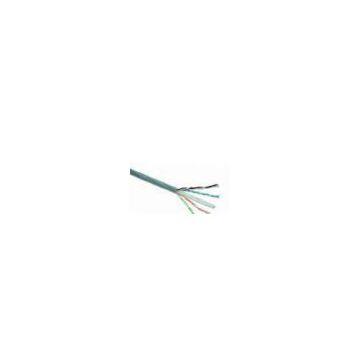

Sell UTP Cable

UTP CAT6:
Product Description:
Reference standard: UL444, TIA/EIA-568B
Bare solid copper conductor
ROHS complied PVC, PE or LSOH jacket
Complies to TIA/EIA-568B&ISO/IEC 11801

Application:
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Cable Construction:
Conductor Dimension: 0. 50mm 0. 51mm
Core Dimension: 0. 91mm 0. 92mm
No. Of Pairs: 4  25
Nom. OD: 5. 3mm 14. 0mm 13. 0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE

Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31. 25 62. 5 100
Attenuation(dB/100m): 2. 0 4. 1 6. 5 9. 3 11. 7 17. 0 22. 0
Impedance(ohm): 100 100 100 100 100 100 100
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 62. 3 53. 3 47. 3 42. 8 39. 9 35. 4 32. 3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21
PS NEXT(dB/100m): 62. 3 53. 3 47. 3 42. 8 39. 9 35. 4 32. 3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21

Packing:
1) Packing Lengths:
305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Certificates: ISO9001,14000
