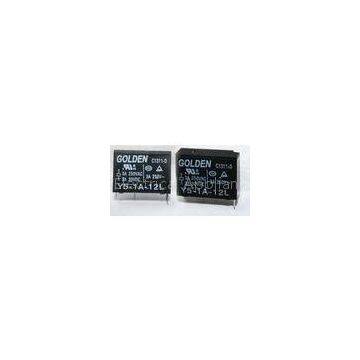

3A 5A 12V Black PCB Type Mini Electronic Signal Relay Y5-1A-12L SRB
- T/T L/C D/P D/A
- 7 days
You May Like
-
16A / 250V DC Power Relay , High Voltage Protection Relay Custom Made
-
Black 2 Pin DC Power Relay GK-D JQX-105F-1 General Purpose Relay
-
Z1 80A 250V AC High Frequency Relay 12V 4 Pin Relay for Electricity Meter
-
120A PCB Layout Mini DC Power Relay Power System Protection Relays
-
Black Small Mini Plastic Sealed Industrial Relays GN T76 HF7520 16A 12V/24V
-
Subminiature PCB Mini Power Relay General Purpose Relay Custom Made
Product Details
| Brand Name | GOLDEN | Place of Origin | China | |
| Model Number | Signal Relay Y5-1A-12L SRB 5A 12V black (3A/250VDC ) 0.36W 5-48VDC SPST/SPDT -40~85C |
Product Description
3A 5A 12V Black PCB Type? Mini Electronic Signal Relay Y5-1A-12L SRB
Quick Details:
3-5A switching capability 1Form A ?configurations Subminiature standard PCB layout Plastic sealed and flux proofed types available Class F&Class B insulation system Environmental friendly product(RoHs compliant)Description:
Signal Relay Y5-1A-12L SRB 5A 12V ?black (3A/250VDC ) 0.36W 5-48VDC ?SPST/SPDT -40~85C
Applications:
Home appliances?air conditional heater etc Welder machinesSepecifications:
|
Resistive load |
5A? 250VAC |
|
Max. switching current |
5A |
|
Max. switching voltage |
250VAC |
|
Max. switching capacity |
1,250VA |
|
Contact material |
Silver alloy |
|
|
Contact resistance |
50mΩMax. |
|
|
Operate time |
20ms Max. |
|
|
Release time |
10ms Max. |
|
|
Insulation resistance |
1,000 MΩ Min.(DC500V) |
|
|
Dielectric strenGHh(1) |
Between open contact? :AC750V, 50/60Hz 1min. |
|
|
Between contact and coil: AC4,000V, 50/60Hz 1min. |
||
|
Vibration resistance |
Operating extremes |
10～55Hz,amplitude 1.5 mm |
|
Damage limit |
10～55Hz,amplitude 1.5 mm |
|
|
Shock resistance |
Operating extremes |
10G |
|
Damage limits |
100G |
|
|
Life expectancy |
Mechanical |
10,000,000 operations ?(frequency 108,000 operations/h) |
|
Electrical |
3A? 277VAC:100,000 operations 5A 277VAC:50,000 operations (frequency 1800 operations/h) |
|
|
Operating ambient temperature |
-40℃～+85℃(No condensation) |
|
|
Weight |
Approx. 3.9g |
