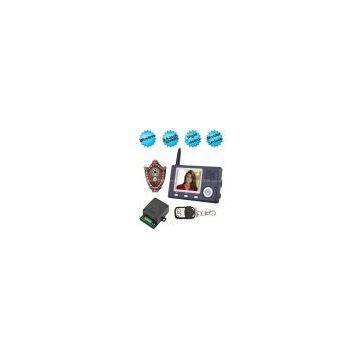

Video Door Phones Peephole Wireless Video Door Phone With Automatic Door Opener LM-VDP736

This system operations in the 2.4GHz radio band for wireless transmission of digital audio and video signals. It can be used in apartments, villas, hotels,officers, publib buildings,etc.With a fashional and fresh outlook, the view is clear and sharp. The outdoor camera is easy to install while the indoor monitor does not require any communication wire. You can use the system where the wireless signal can reach, such as dining room, living room, balcony,kitchen and so on. So this is an ideal safety product for modern families.Indoor monitor can wall-mounted or desktop, and can be moved at any time, so you can know or see your guests at any time and location.It is made of Outdoor Camera (Peephole Viewer), Indoor Monitor and Wireless Unlock Control. Outdoor Camera can be installed in variable types of doors (Door Thickness: 35~110mm, Peephole Diameter: 14~38mm); Indoor Monitor can be handheld or placed on the table or hung on the wall. Wireless Unlock Control unit connects with the e-lock (electric lock)Wireless connection applies among above three parts.


Features:
    * 3.5'' wide angle LCD screen looks comfortable;
    * Auto photo record function when nobody answer the call;
    * Manual photo record function;
    * Wide angle lens and IR night version camera, work well even in dark enviroment;
    * Effective transmission distance (No obstacle) is up to 300 meters
    * Infrared LED Lights enables the camera to capture image clearly under Low-illumination environment
    * Automatically / Manually Photo taken & recording with Time/Date stamped
    * Configured with one rechargeable Lithium Battery each on both Outdoor Camera & Indoor Monitor
    * Peephole Viewer supports two working modes: 1) ON 1: Power Saving Mode (one year) 2) ON 2:  Power Consumption Mode (about 5 days)
    * 16 Chord ring tones optional & volume adjustable
    * Wireless real-time Monitoring & Talking function
    * Wireless door unlock


Parameters:
Outdoor Camera:
    * Camera:1/4'' CMOS 300K pixels
    * Mini Illuminance:0Lux (IR on)
    * Night Version:8 IR LED lights, visible within 2 meters
    * Battery: BL-5J Rechargeable Li-ion Battery (3.7V/1300 mAh)
    * Power Consumption:Standby: 10mAh(0.04W); Working: 120mAh(0.45W); Max: 150mAh(0.56W)
    * Installation:Embedded
    * Size:Camera Size: 126mm*93mm*42mm
    * Material:Metal
    * Door Thickness: 35~110mm, Peephole Diameter: 14~38mm

Indoor Monitor:
    * Screen:3.5 inch TFT LCD Screen
    * Resolution:320*240 pixels
    * Image Record:Around 160 pieces color photos
    * Ring:Option of 16 chords;
    * Battery Bar Display:5 grades
    * Signal Display:6 grades
    * Power:By removable& rechargeable Lithium battery
    * Wireless Transmitting Range: Up to 300 meters (ideal conditions)
    * Video Compression:MJPEG
    * Audio Compression:ADPCM
    * Frequency:ISM 2,400~2,483 MHz
    * Transmission Power:17dBm
    * Modulation:GFSK
    * Working Temperature:-15°C~55°C/5°F~131°F
    * Working Humidity:<85%

Product Notes:
    * The product will only open doors automatically when equipped with an eLock system.
    * Easy to install and use!
    * The portable receiver charges with the adapter included or through a USB connection to your PC computer
    * Transmitting unit comes with six infrared LED lights to allow seeing who is at your door even in darkness!
    * To view captured photos, press and hold down the photo button for 3 seconds, then navigate photos with the arrow keys


Packing Contents:
    * 3.5 inch TFT LCD Wireless Indoor Monitor
    * Outdoor Peephole Viewer Camera
    * Peephole Host
    * Fixed Board
    * Fixed Pole (Door Thickness: 35-60mm, 60-85mm, 85-110mm)
    * Extended Pole (Peephole Diameter: 24mm-35mm, 35mm)
    * Extended Flexible PCB (Door Thickness: 60-110mm)
    * Screws Package
    * Wireless Unlock Control
    * Power Adapter
    * 80cm Wire
    * 120cm USB Cable
