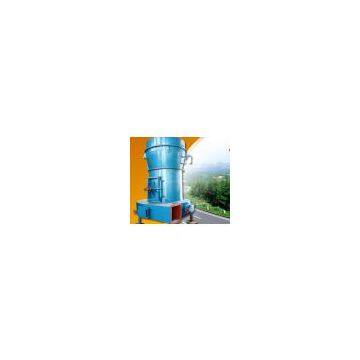

Raymond Mill

Brand Name	Dafu		Place of Origin	China
Model Number	4R3016

Raymond Mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

Structural characteristics of Raymond Grinder:
the whole grinding mill is of a standing structure. It features small occupying space and strong integration capacity. It can form an independent production system from the lump materials , crushing to finished powder and packaging. All the finished particles have a good uniformity of fineness, with passing screen rate as high as 98%. This is what other machine cannot reach. The machine adopts electromagnetic vibrating feeder, which ensures even and regular feeding. It is easy to adjust, small in dimension, light in weight, with lower oil and power consumption and easy to maintain. The transmission device of the main unit is equipped with a close gearbox which ensures its smooth transmission and reliable operation. Attendance of operater is not necessary in the mill operating room because the adoption of advanced central control console switch.

Type	Roller			Ring		Max.Stuff size(mm)	Fineness of product(mm)	power for Machine(kw)
	NO	DIMENSION(mm)	HEIGHT(mm)	INSIDE DIAMETER	HEIGHT(mm)
3R2115	3	210	150	630	150	15	0.44-0.165	15
3R2615	3	260	150	780	150	15-20	0.44-0.165	18.5
3R2715	3	270	150	830	150	15-20	0.44-0.165	22
3R3016	3	300	160	880	160	15-20	0.44-0.165	30
4R3216	4	320	160	970	160	20-25	0.44-0.165	37
