Home > Products > Color Coated Steel Coil > Ral Color PE Resin Paint Color Coated Steel Coil Z60g - Z275g For Building Materials

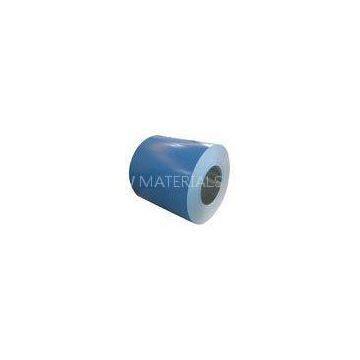

Ral Color PE Resin Paint Color Coated Steel Coil Z60g - Z275g For Building Materials
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Green / White Color Coated Galvanized Steel Coil , ASTM HDP Paint GI Steel Coils
-
Anti Erosion Aluzinc Color Coated Steel Coil Anti Rust 20 Years Anti Fade
-
Hot Dip Galvalume Color Coated Steel Coil Thermal Insulation 15um - 25um PVDF
-
Sea Blue / White Roofing Steel Coil , EN Hot Dip Galvalume Steel Coil
-
Waterproof Metal Roof Pre - Painted Galvalume Steel Coil PE PVDF Paint Type
-
DX51D+Z Z100g Color Coated Steel Coil , Impact Resistance Color Steel Coil
Product Details
| Brand Name | Xinhong Steel | Place of Origin | China | |
| Model Number | ASTM ,JIS, EN |
Product Description
Certification:IOS,MSDS
Ral Color PE Resin Paint Color Coated Steel Coil Z60g - Z275g For Building Materials ? Color Coated Steel?Coil?
Color coated steel coil is roll?Paint on hot dip galvanized or galvanlume?steel make its corrosion resistance better?.Meanwhile, there are various colors painted for your choice and simulated pattern?of wood grain, marble, granite can be customized specially. Besides, it is usually used to indoor and outdoor decoration.
Our manufactory has capacity for 400,000 Ton color coated steel coil?per year.
Color Coated Steel?Coil is?Zn?60g,?25um painted in top and 10um painted in back.
Specification
?
| Base Metal | Hot dipped galvanized steel DX51D+Z |
| Hot dipped galvalume steel DX51D+AZ | |
| Thickness | 0.14mm-1.6mm |
| Width | 600mm-1250mm |
| Coil ID | 508mm, 610mm |
| Layers of the coating | 2/2(2 layers of top coating/2 layers of bottom coating); 2/1(2 layers of the top coating, 1 layer of bottom coating); |
| Color | According to customers’ request |
| Coated | ZN40g-ZN275g or AZ30g-AZ180g |
| Paint type | PE, HDP, SMP, HPC, PVDF |
| Paint thickness | 15um-25um |
| Surface | Overlay film (optional) |
Applications:
| construction | workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door |
| door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter | |
| Electrical appliance | refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker |
| Furniture | central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf |
| Carrying trade | exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board |
| other | writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment |
Usually we can produce according to RAL color card or sample?
Other special grain:simulated?Wood grain ,Stone grain ?and?Embossed
b.?thickness
We can make from?0.14 mm?to?1.6mm?as your requirement
c. widthWe can make from?600 mm?to?1250 mm, and common width are?1000mm,?1219mm?and?1250mm.
d. paint?thicknessUsually we can make 25um in top and 10um in back
e. weight of Zn coatingWe can provide?40g-275g?per square meter, most customers demand?60g/m2.
f. with film or notWithout film is the most selection
Payment
a. 30% prepayment and 70% against B/L copy.
b. L/C at sight (need check the bank information and account information)
Delivery time
Within 15-30 days after prepayment under normal conditions.
We will inform you when signing contract if delivery time delay
