16 core FDB fiber box
- 1000 Piece / Pieces per Month
- 3 days
You May Like
-
16 core FDB fiber box
-
16 core FDB fiber box 16-core FDB black fiber box
-
16-core FDB black fiber box
-
Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters
-
16 Port Fiber Optic Termination Box FDB White with SC/APC PLC splitte
-
Duplex SC/APC Adapter FTTH Socket Panel Wall Outlet Box Plastic ABS Terminal Box
Product Details
| Place of Origin | China | Model Number | blu-ruy |
Product Description

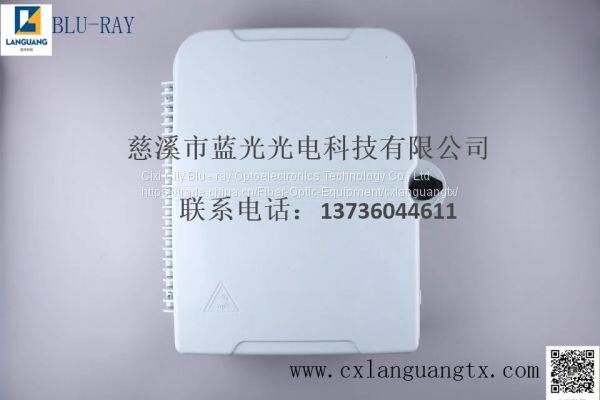

NT-FTB016 Type Optical Termination Box
NT-FTB011 Type Optical Termination Box is designed to connect feeder/distribution cable to subscriber's
drop cable using PLC splitter in FTTx networks. NT- FTB011 has 2 input ports and 16 output ports on the bottom
and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and
the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
Features
1) User familiar industry interface, using high impact plastic
2) Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
3) Ultra violet resistant and rainfall resistant
4) Up to 16 FTTH drops
5) Wall and pole mountable
6) 2 inlet ports, 16 outlet ports
Specifications
ITEM | Values | |
Dimensions | L : 225 ㎜, W : 302 ㎜, H : 71 ㎜ | |
Weight | 1.3 ㎏ | |
Cable input port | Max. 2 ports (Max. dia. : 12 ㎜) | |
Cable output capacity | Max. 16 ports (Max. dia. : 3 ㎜) | |
Max. capacity | 12 core | |
Operation Temperature | -40 ~ +85℃ | |
Tensile Strength | ≥ 450 ㎏/?, @10 ㎜/min | |
OTB Resin | Impact Strength | 35 ㎏㎝/? (normal temp.), 10 ㎏㎝/? (-30℃) |
Flexural Strength | ≥ 450 ㎏/?, @10 ㎜/min | |
