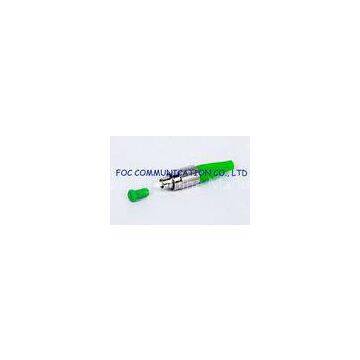

Simplex FC / APC Optical Fiber Connector For Communication Network

Simplex FC / APC Optical Fiber Connector For Communication Network?

Fiber Optic Connector is an important components used in the fiber optic network. It is also the key part used in fiber optic patch cord and fiber optic pigtail.

Fiber Optic Connector is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.

There are single mode and multimode connectors. According to the shape of fiber optic connectors, there are FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN and so on.

Material

Cores: simplex, multi core pigtails(6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

Endface type: UPC, APC

FC fiber optic connectors, Strengthening way is to use an external metal sleeve, fastening means for the turnbuckles. Generally adopt ODF side(Mostly used one the patch panel).
ST fiber optic connectors, Commonly used in fiber optic patch panels, rounded shell, fastening means for the turnbuckles.(Commonly used in fiber optic patch panel).
SC fiber optic connectors, Connected with GBIC optical modules connector, its casing is rectangular, fastening means is a latch type using pin plug, do not need to rotate.(Mostly used in Switch Router).
LC fiber optic connectors, Connected with SFP module connector, it uses easy operation made modular jack (RJ) latch mechanism
MT-RJ fiber optic connectors, Square transceiver fiber optic connectors, one pair of fiber transceiver.

Features

Using High precision ferrule

Low insertion loss

High return loss

Excellent repeatability

Compact and anti-pull design
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors

Applications

Local area networks, wide area networks

Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection

Premise Installations
Telecommunication Networks

Fiber to the home

SPECIFICATIONS

Ordering Information
