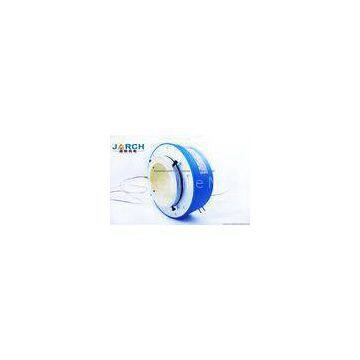

ID120mm Through Bore Slip Ring Transferring Power or Data for Heavy Equipment Turrets

ID120mm Through Bore Slip Ring Transferring Power or Data for Heavy Equipment Turrets

?
?
Quick Detail:

?
?
Description:
?
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
?
JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
?
?
The TH120?uses JARCH\'s fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 120mm through-bore for routing hydraulic or pneumatic lines. The 2~50 amps /circuit are available in 1-72?ring.
?
?
Benefits:
?
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
?
?
Dimensions:
?

The length of slip ring will?be advised when rings and ?current details are options .?Please contact JARCH technical department.

Model Explanation:
?

?
?

Specifications:
?

?
Applications:
?

? Exhibit/display equipment

? Packaging / wrapping machinery

? Semiconductor handling systems

? Industrial machinery

? rotary index tables

? Process control equipment

? Heavy equipment turrets or cable reels

? Emergency lighting, robotics Palletizing machines, Option

? Medical equipment | rotary sensors, emergency lighting, robotics

? Miniature cable reels

?
Installation Instructions:
?
Shaft Mounted

?
Flange mounted:
?

?
Why to choose JARCH slip ring?
?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the wo
