- Mengcun Hui Autonomous County Tianyuan Pipe Fitting Co., Ltd.
-
Shaoxing, Zhejiang, China
- Main products: Carbon Steel Butt Welding Pipe fittings including elbow, tee, cap, reducer in various sizes and specifications
Home > Products > Forged Flange > ASTM carbon steel forged Flange

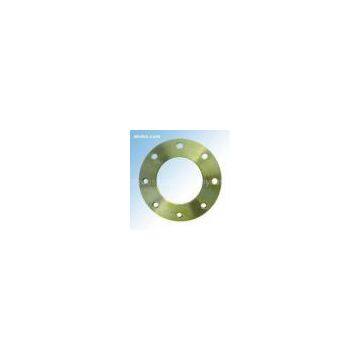

ASTM carbon steel forged Flange
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
Product name:Welded Flange
Welded flange introduction:
Welded flange technical parameter:
|
Welde Flange |
Flange Nominal Pressure PN,MPA(bar) | |||||||
|
1.0 (10) |
1.6 (16) |
2.5 (25) |
4.0 (40) |
6.3 (63) |
10.0 (100) |
16.0 (160) |
25.0 (250) | |
|
Welde Flange Raised Face (RF) |
DN10~2000 |
DN10~ 1000 |
DN10~ 600 |
DN10~400 |
DN10~ 300 |
DN10~ 250 | ||
|
Welde Flange MFM |
DN10~2000 |
DN10~400 |
DN10~ 300 |
- | ||||
|
Welde Flange TG |
DN10~2000 |
DN10~400 |
DN10~ 300 |
- | ||||
|
Welde Flange FF |
DN10~2000 |
- | ||||||
|
Welde Flange RJ |
- |
DN15~400 |
DN15~ 300 |
DN15~ 250 | ||||
| Welde Flange Thickness | Welde Flange Neck | Welde Flange | Welde flange theory weight | ||||
| N | S | H1 ≈ |
R | ||||
| C | A | B | H | ||||
| 24 | 32 | 32 | 3 | 6 | 3 | 45 | 1.39 |
| 26 | 34 | 34 | 3.2 | 6 | 3 | 45 | 1.65 |
| 30 | 42 | 42 | 3.6 | 6 | 4 | 52 | 2.9 |
| 32 | 52 | 52 | 3.6 | 6 | 4 | 58 | 3.61 |
| 34 | 60 | 60 | 3.6 | 8 | 5 | 60 | 4.6 |
| 36 | 70 | 70 | 4 | 10 | 5 | 64 | 5.92 |
| 38 | 90 | 90 | 6 | 10 | 5 | 75 | 8.28 |
| 42 | 108 | 108 | 7 | 12 | 6 | 82 | 10.8 |
| 46 | 120 | 120 | 7 | 12 | 6 | 86 | 12.9 |
| 52 | 150 | 150 | 8 | 12 | 6 | 100 | 19.6 |
| 56 | 180 | 180 | 10.5 | 14 | 6 | 115 | 30.6 |
| 62 | 210 | 210 | 12.5 | 14 | 8 | 128 | 42.2 |
| 66 | 278 | 278 | 16 | 16 | 8 | 140 | 65.6 |
| 76 | 340 | 340 | 20 | 18 | 10 | 155 | 106.4 |
| 88 | 400 | 400 | 22.3 | 18 | 10 | 175 | 153.2 |
