Product Details
Brand Name | KETONG | Place of Origin | China | |
Product Description
Certification:ISO,GOST-R,CE

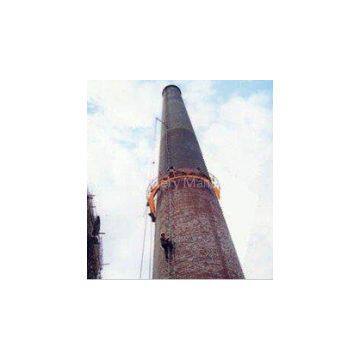

120 KG Cirque Suspended Working Platform for the Chimney Wall Painting
KETONG?Suspended working platform more than 8 years , more than 90% products export to all over world for 7 years , we already have agents in following countries :?Dubai UAE ,? Russia , Vietnam, India?. some other place we can discussing now . We have a complete after-sales service system to ensure the machines keep working well ,?you can find easy of our? working?team even just?1 set platform in that market .?so please?set your heart at rest to do business with us .??
Model | ZLP100 | ZLP250 | ZLP300 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
Material | Aluminum | alloy, | Steel | painted, | Steel | galvanized | ? |
Load capacity | 100kgs | 250kgs | 300kgs | 500kgs | 630kgs | 800kgs | 1000kgs |
Safety lock type | LST30 | LST30 | LST30 | LST30 | LST30 | LST30 | LST30 |
Hoist model | LTD6.3 | LTD6.3 | LTD6.3 | LTD6.3 | LTD6.3 | LTD8.0 | LTD10.0 |
Volume | 1.5 | 2.3 | 2.4 | 2.8 | 2.9 | 3.0 | 3.2 |
Max Speed (m/min) | 8.3 | 8.3 | 8.3 | 8.3 | 8.3 | 9.6 | 9.6 |
20GP container qty | 20 | 16 | 12 | 10 | 10 | 9 | 8 |
Counter weight qty | 25x16pcs | 25x16pcs | 25x24pcs | 25x32pcs | 25x36pcs | 25x40pcs | 25x44pcs |
Diameter of steel rope(mm) | 8.3 | 8.3 | 8.3 | 8.3 | 8.3 | 8.6 | 9.1 |
Weight (kg) (Aluninum alloy) | 1140 | 1170 | 1400 | 1650 | 1750 | 1930 | 2250 |
Weight (kg) (Steel painted ) |
1170 | 1220 | 1500 | 1740 | 1890 | 2100 | 2560/2670 |
Weight(kg) (Steel with glavanized) | 1170 | 1220 | 1500 | 1740 | 1890 | 2100 | 2560/2670 |
Length of Platform | 1m | 2m | 3m | 5m | 6m | 7.5m | 7.5/10m |
Steel wire rope | 4x25mm | 4x25mm | 4x25mm | 4x25mm | 4x25mm | 4x31mm | 6x19mm |
? Ketong Suspended working platform has many models for your choosing or customized? for different building request , we have clearly video and instruction book to help you install and use smoothly , We also have a huge team of after-sales service to keep our machines working well always , we are developing agents all over world to protect our brand reputation and local sellers price , we have very good rules to you if you would like to be our agent , such as we can come to your local fair? , have meeting with your buyers as a professional factory , our engineer?can come to you to?teach your workers to know our platform deeply ?, strict contract to protect agents in that area ...? Welcome to discuss .
The main Part:
1. Suspension Mechanism and Counterweight
??? The Height of the platform can be adjusted within 1150-1800mm with arm which can? be stretched out and drawn back , it can be widely used parapet and complicated building in different height , and we can also supply?customized platform to meet different
