ZLP1000 6*19W+IWS-8.6 Rope Suspended Platform with 30 kN Safety Lock

FOB Price

USD $4 - $5 / Tonne

1 Tonne(Min.Order)

Supply Ability 0 Tonne / Tonnes per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

ZLP1000 6*19W+IWQ-8.6 Rope Suspended Platform with 30 kN Safety Lock

Descrition:

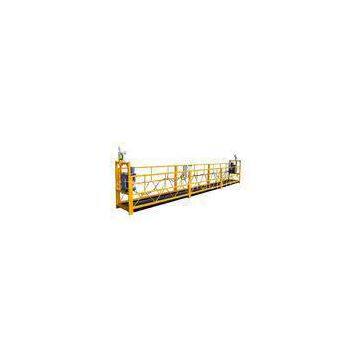

A kind of Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a lightweight aluminum-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.
?

It is easy for operation, flexible for moving, reliable in safety. Besides, it is not necessary to build scaffolding in the construction, the efficiency will be promoted and the cost will be reduced.Therefore, Shenxi ZLP series versatile knock-down platforms provides workers safer, easier and more efficient platform access.

Specifications:

Item	Parameters
Rated capacity	1000 kg
Rated speed	8.3 m/min
Platform length	2.5m*3
Steel rope	6*19W+IWQ-8.6
Hoist	Hoist model	LTD10
Rated lifting force	8 kN
Motor	Model	YEJ100L1-4
Power	3 kW
Phase	3 Phase
Speed	1420 r/m
Brake force moment	30 Nm
Safety lock	Configuration	Anti-tilting
Permission force of impact	30 kN
Locking Cable Distance	＜100mm
Locking Cable Angle	3°～8°
Suspension mechanism	Front beam overhang	1.3-1.7 m
Height adjustment	1.365 -1.925 m
Weight	Lifting part (including hoist, safety lock and electric control system)	Steel Platform	600 kg
Aluminum platform	430 kg
Suspension mechanism	310kg
Counter weight	1300 kg

Competitive Advantage:

-Made of high strength aluminum alloy

-Powered by new motor system

-A suspended access platform with sufficient capacity to carry huge load.

-Access to any manner of buildings or constructions

-Size of platform can be adjusted on request

-Used mainly for maintenance and construction work concerning unapproachable buildings or objects such as huge tanks, ships, dams, etc.
