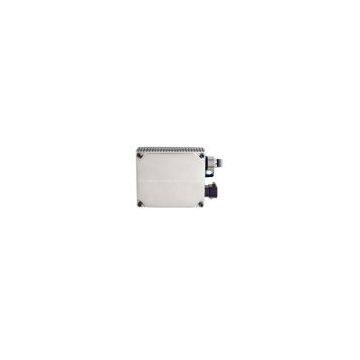

CM-07(black) HID Ballast for Automotive Xenon Bulb

?  Operating temperature: -40 to 105 ℃?

?  Steady state light output: 3000±200 lumens

    typical, bulb type dependant?

?  Turn on light output: >70% at 2 sec, >85%

   at 3 sec?

?  Expected ballast life: >3000hrs?

?  Radiated EMI susceptibility: S95/54/EC?

?  Radiated EMI emission: S95/54/EC ?

?  Cooling: air cooled?

?  Stead state output power: 35W or 55W±3W

?  Open lamp circuit protection: Latch off

    after 1 second?

?  Short circuit protection: Latch off after 1

    second?

?  Output AC frequency: 250Hz?

?  Maximum input current: 9A initial lamps on,

   3A next 2 sec?

?  Instantaneous voltage when turn on the

    light: 20K-25KV?

?  Shock-resistant and water-resistant

    protection?

?  Steady state input voltage: 9-16V?

?  Max in rush current: 9A at 50ms, 3.2A at 2

   sec and decreasing to steady state within

   45 sec?

?  Input turn on: 9V or above?

?  Input turn off: Below 8V?

?  Reverse voltage protection: no damage to

   ballast with -42V?

?  Conducted EMI susceptibility: S95/54/EC

?  Conducted EMI emission: S95/54/EC?

?  Compact size: 87×76×35mm?

?  Cable length: 400mm?

?  Weight: 0.5kg
