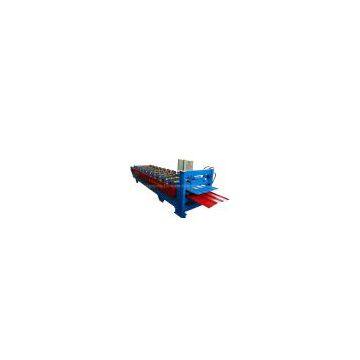

Double Layer Roll Forming Line

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

LIMING MACHINE

Place of Origin

China

Technical parameters:
1) Material spec: colored steel sheet, galvanized steel sheet
2) Thickness of coil sheet: 0.5 - 0.8mm
3) Main motor power: 3KW
4) Forming speed: 12m/min
5) Hydraulic station power: 3kW
6) Quantity of stands: about 11 groups
7)Diameter of roller: ￠70mm
9) Index error of length: 10m - 2mm
10) Total weight: about 10ton
11) Voltage: 380V 3 phase 60Hz or at buyer's requirement
Material of main equipment:
1) Roller material: high grade No.45 forged steel, plated hard chrome on
the surface of roller with thickness 0.05mm
2) Active shaft material: high grade No.45 carbon wrought steel at
diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4) the panel surface no scratch

5)Frequency converter adopt ABB,

6)PLC: Computer adopt PLC, Mitsubishi FX-IS series

7)Computer operating board adopt OP320A, China
Producing flow:
Decoiling the sheet-sheet guiding-roll forming-measure length-cutting the panel-panels
to the supporter
