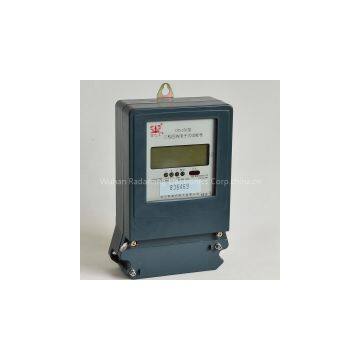

Three Phase Factory Use Electric Energy Meter With CT mode

1. Description

DTS150 series three-phase three-wire/four-wire static active energy meters are based on advanced SMT technology and LSI, and adopt modern microelectronics, computer technologies and modern management methods. The products have the characteristics of high reliability and high accuracy.

The technical indexes of meter conform to the standards of IEC61053 ”Classes 1 and 2 Electricity metering equipment (a.c.) Particular requirements Part 21: Static meters for active energy”. The product can measure accurately the positive (reverse) active electrical energy of three-phase electrical net.

1. Operating principle

Electric circuit principle:Made of measuring unit and data processing unit, and has the characteristics of high reliability, high accuracy and low consumption.

Meter adopts three-phase power supply; it can operate normally at the time of only two-phase supplying power (three-phase and four-phase, only one-phase supply power).

After sampling voltage and current, the energy consumed by user is changed to signal, then is sent to amplifier and multiplying unit, product signal switched by integral and V/F, output pulse signal by fractional frequency and power drive, and then bring along stepper register to accumulate energy.

3.Main functions

-Bi-directional measurement: measure electrical energy forwardly at the time of reverse power.

-Indication of phase absence: indicator light goes out when some phase is absent.

-Indication of communication: communication indicator light shines when communicate.

-Adopt the photoelectrical isolation technique to output the electric energy pulse signal, lighting diode indicate the use of electricity.

-RS485 and infrared communication (optional).

4.Main technical parameter

accuracy class:class 1.0  class 2.0

standard: IEC 62053-21

Accuracy rated:1.5(6)A 5(20)A 10(40)A 15(60)A 20(80)A 30(100)A

rated voltage:3*100V  3*380V  3*220V

rated frequency:50HZ  60HZ

voltage circuit power consumption:<or=2w

operation valtage  0.7Un-1.2Un

outside dimension: 225mm*145mm*72mm

installation dimension:185mm*125mm
