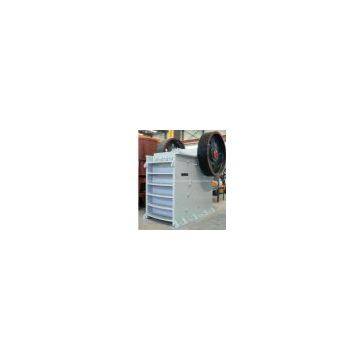

Sell Jaw Crusher,stone Crusher,crushing Plant

Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.

This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw Crusher can be used in mining,
metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.

Our Jaw Crushers are ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance.
Every feature of these machines has been carefully designed to provide superior quality and performance. They are widely used
for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum,
oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. These crushers are recommended by leading consultants in
this field and are used by hundreds of customers all over the world.

The models of each crushers list below:
Jaw crusher:PE150x250//PE250x400//PE400x600//PE500x750//PE600x900//PE750x1060//PE900x1200//
PEX250x750//PEX250x1000//PEX250x1200

Jaw Crusher Features:
1. simple structure, easy maintenance;
2. stable performance;
3. even final particles and high crushing ratio.

(1) PEX series Jaw Crusher for stone processing line Description
PEX Jaw Crusher /crushing machine is widely used in mining, metallurgy, building material, highway, railway, water conservancy, and chemical industries.
  PEX Series jaw crusher is always as same as the PE Series Jaw crusher. But the most advantages of the PEX comparing with the PE Series is that : The PEX Series is very suitable to crush the material whose size must less than 300mm. Moreover the final product size is also very small. The Discharging size range is 18-90mm.
They are also widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. Various materials with compressive resistance less than 250MPa can be crushed.

(2) Working Principle
The Jaw Crusher motor transmits power through the belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between moving jaw and toggle plate increases while moving jaw moves up, then the moving jaw closes to the fixed jaw. During this process, the stone stuff will be crushed.

(3) Features and Advantages
1. Simple in structure, reliable in operation.
2. Easy to maintain, low cost in keep functioning.
3. Suitable for crushing maximum, medium and minimum stones.
4. The final product is very fine. The discharging size range is 18-90mm

type
Feed opening Max.feed lump Setting adjustment Capacity Power Weight
(excluding motor) Overall dimension
size(mm size(mm) range(mm) (t/h) (kw) (t) (mm)
PE-150×250 150×250 125 10-40 1-3 5.5 0.5 720×660×850
PE-200×300 200×300 180 15-50 5-20 7.5 1 950×820×1000
PE-200×350 200×350 180 18-70 3-10 11 1.3 1100×950×1150
PE-250×400 250×400 210 20-60 3-13 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-55 30 6.5 1730×1730×1630
PE-500×750 500×750 425 50-100 32-85 55 10.3 1980×2080×1870
PE-600×900 600×900 500 65-160 50-120 75 20 2290×2290×2400
PE-750×1060 750×1060 630 80-140 115-210 110 28 2351×2370×2783
PE-870×1060 870×1060 660 200-260 290-336 110 30.5 2840×2420×2940
PE-900×1060 900×1060 685 230-290 160-400 110 31 2870×2420×2940
PE-900×1200 900×1200 750 95-165 140-265 110 50 3335×3182×3025
PE-1000×1200 1000×1200 850 195-265 315-345 110 51 3435×3182×3025
PE-1200×1500 1200×1500 1020 150-300 400-800 160 100.9 4200×3732×3842
PEX-150×750 150×750 120 18-48 8-25 15 3.5 1215×1584×1025
PEX-250×750 250×750 210 25-60 13-35 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 37 6.5 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 45 7.7 2140×1660×1500
