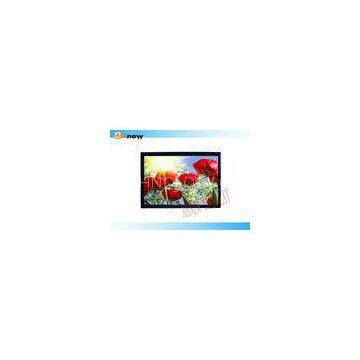

26 Inch HD AC100V - 240V Sunlight Readable LCD Display High Contrast IP Front Bezel Design
- T/T L/C D/P D/A
- 7 days
You May Like
-
Kiosk High Brightness 15 inch VGA Industrial Touch Panel PC Intel Atom D2550
-
Black / White Stock 19 Inch Industrial Touch Panel PC With 2.7GHz Dual Core
-
Multi - Touch Dual Core 2.7 GHz Industrial Touch Panel PC 21.5 Inch For WIN7/8/Linux
-
4:3 12.1 Inch Stainless Steel Industrial LCD Displays Vesa Mount LCD Monitor 400cd/m^2
-
High Definition 15\" 400nits IR Touch Screen LCD Monitor With Wall Mounting
-
Slim Infrared Dual Touch screen Industrial LCD Displays 21.5 Inch For Automatic Equipments
Product Details
Brand Name | AXNEW | Place of Origin | China | |
Model Number | AXD-26OPIPN1P-VH4 |
Product Description
Certification:CE/ROHS
26 Inch ?Sunlight Readable LCD Industrial Monitor? High Contrast With IP Front Bezel Design
1000nits Industrial display of 26 inch? with high contrast ?high performance LCD monitor with VGA HDMI, AV , Video input ;?
vesa mounting easily used for Digital Signage , Gaming , Automatic equipments, Advertising , vending embedded system,Kiosks application etc.
Quick Details:
Model: AXD-26OPIPN1P-VH4
Screen Size:26’’????????
Screen format: 16:9
Display Resolution(pixel):1366X768/1920x1080
Contrast Ratio:1200:1
Brightness:1000cd/m^2
Storage temperature : -20℃~70℃
Input signal: VGA DVI; HDMI; AV; Video;USB; S-video, etc
Power Input: ?AC100~240 V /DC 12V
Product status: Stock
Features and Advantages
1. High Resolution with high contract LCD in stable supply
2. industrial control board supports the displays working 24 hours
3.? 170/170 wide viewing angle with high performance
4.? VGA HDMI ,AV ,Video, YPbPr etc interfaces
5. Integrated solution for touch screen and LCD display; good performance and easy assembling.
6. Interface both for USB and RS232 is available. No further hardware is needed for the convenience of NBSP users.
7. Higher sensitivity and faster response
8. Long durability; 1000nits high brightness LCD panels for this industrial monitor grade
9. Multi-options for assembling, including vertical, horizontal support. You may assemble it in VESA standard solution or in your own design.
10. We also provide the service of producing the product in users’ own design.
Display Specifications |
|
Display |
26.0\" Color TFT high brightness LCD monitor |
Model Name |
AXD-26OPIPN1P-VH4 |
Active Display Area (mm) |
580.2 (H)x328.2(V) |
Pixel Pitch (mm) |
0.300(H)x0.300(V) |
Resolution (Pixel) |
1366X768/1920X1080 |
Brightness (CD/m^2) |
1000cd/m^2 |
Contrast Ratio |
1200:1 |
Viewing Angle (CR >=10) |
170/170 |
Power consumption |
98?W typical, normal operation |
Touch Screen |
Resistive RS232/USB(Optional) |
OSD Control |
On the back side |
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
Power Input Touch Screen options |
AC100~240V |
Mechanical Specifications |
|
Construction |
Steel metal housing |
Dimensions |
Drawings |
Mounting |
Embedded ,fixing holes on the |
Power source |
AC 100~240V/ 12V DC |
Environment Specifications |
|
Operating Temperature |
-10~70℃ |
Storage Temperature |
-20~80℃ |
Rating |
Facilitate installation of the demolition,solid portfolio |
Ordering Information |
26” High brightness LCD?HD with ?1000nits brightness monitor |
Packaging & Delivery
Packing details |
1x 26 inch Sunlight Readable LCD?display; Packed in 2 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
Delivery terms |
7- working days for stock products after receiving payments;? 15 working days for order production |
