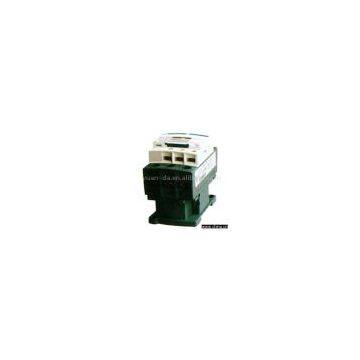

Sell AC Contactor (LC1-D New)

Place of Origin	China

Model No.:LC1-D new AC contactor
Product Origin:China
Brand Name:Ryoden
Price Terms:FOB, CNF, CIF
Payment Terms:
Certification:
Description:Applications: LC1-D new series AC contactor is suitable for using in the circuit up to the rated voltage 660V, AC 50Hz or 60Hz, rated current 95A, for making, breaking, frequent starting and controlling the AC motor. Combined with the auxiliary contact block, air delay contactor, mechanical interlocking contactor and Star/DeltaStarter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to ICE158-1, VDE0660 and BS5432. The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary contacts are arranged 2NO and 2NC at most. It is employed the flexible locking connection between the contact support and core. There are no arc-isolated panel in the ≤22A contactors. In the ≥32A contactors, there are molded arc-chute with arc-isolated panel. Because all contacts are made of high non-fusibility and against corrosion silver alloy, all series products can be mounted by screws, ≤32A contactor also by installation rail.
