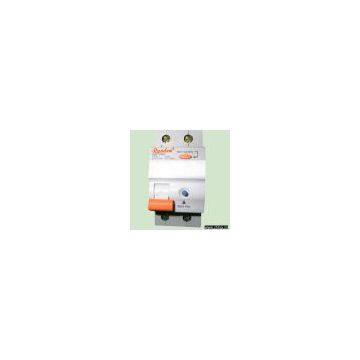

Sell Residual Current Circuit Breaker (YF362)

Place of Origin	China

Model No.:YF362
Product Origin:China
Brand Name:Ryoden
Price Terms:FOB, CNF, CIF
Payment Terms:T/T, L/C
Certification:
Description:Application YDL series circuit breakder,nogteric in structure,light in weight,reliable and excellent in performance,is the latest designed for human indirect contact protection and overcurrent protection in the circuit of AC 50Hz/60Hz,rated voltage 230/400V,rated current up to 63A,or similar circuits in building and also fire protection from contious earthing fault due to no operating of overcurrent protection apparantus.The breaker with overvoltage protection is also designed for voltage increasing protection due to power network fault.Environmental factors are consider in the design of the circuit breaker by taking many recoverable and degradable materials.And it complies with EU RoHS Directive as well as IEC61009-1 Residual current circuit breaker with integral protection for household and similar user(RCBO). Features: 1) In accordance with the IEC61009-1 standards, applying to the circuit of AC 50/60Hz, 240V single phase, 400V 3-phase or below 2) For industrial and mining enterprises, trade buildings, and other commercial and industrial places 3) Mainly used for preventing electrical fire and accidents caused by electric shock or leakage of electrified wire net 4) Current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuits rapidly in order to avoid accidents 5) The item is precise in structure, with less elements, without auxiliary power,high working reliability 6) The function of the switch will not be influenced by ambient temperature and lightning 7) The mutual inductor of the item is used to test vector differential values of passing currents, and produces a relevant output power and adds it to the tripper in secondary winding 8) If the current of vector differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will be protected Specification: 1.Tripping Time:Type G 10ms delay Type S 40ms delay-with selective disconnecting function 2.Rated voltage Un :230/400V,50/60Hz 3.Rated currents In :6,10,13,16,20,25,32,40,50,63A 4.Rated tripping current In :30,100,300,500mA 5.Sensitivity:type A and type AC 6.Rated short circuit strength Inc :10KA 7.Maximum back-up fuse short circuit:In=25-63A 63A gL In=80A 80A gL 8.Rated breaking capacity Im or Rated fault breaking capacity Im :In=25-40A 500A In=63A 630A In=80A 800A
