Kwh Single-step Manually Power Monitoring Equipment Calibration For Harmonics

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Calibrator Supplier Platform		Place of Origin	China
Model Number	Calibrator Supplier Platform

Product Description

Delivery Time:50 days
Certification:IEC, MID

?
Kwh Single-step Manually Power Monitoring Equipment Calibration For Harmonics
?
?
Main?Features:
?

Accuracy : U, I, P, kwh: ±0.05%; Q, kvarh : ±0.1%;U, I, P stability : 0.01%RG/3min, AC Voltage and AC Current distortion : ≤0.2%;Current scope: Min. 0.05A, Max. 100A(Max output 120A); Voltage 100V-250V;Export 2nd-21st harmonics;Automatically or single-step manually test basic error, shunt running, start, standard deviation of single phase energy meter;Equipped with RS232 & Ethernet interface, AT6015C can be operated either stand-alone, or controlled by PC;Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;Remotely updating online, easily achieve software updating;Self-protection, alarming and displaying overload location for Source-output overload, Voltage short-circuit, Current open-circuit;Self-diagnosis for amplifier failure and internal module communication failure;Test 3 energy meters with the same model type at one time;Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);

?
?
Product?Profile:?
?

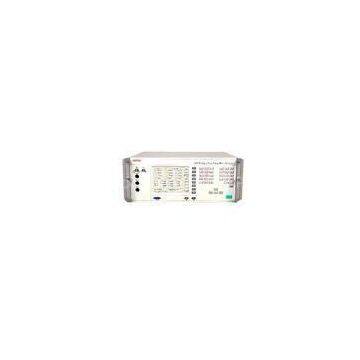

AT6015C?can?calibrate?single?phase?active?&?reactive?energy?meters
?
?
Technical?Specification
?

	Range	Capacity	Adjustment? Degree	Adjustment? Range	Stability?	Distortion (linear?load)	Measurement ?accuracy
AC?Voltage?	?100~250V	30VAmax	0.01%RG	0~120%RG ?	0.01%RG? 3min CL0.05 0.02%RG? 3min?CL0.1	0.2%?CL0.05 0.5%?CL0.1	±0.05%RG? CL0.05 ±0.1%RG?CL0.1
AC?Current?	?0.05A~100A	100VAmax @100A	0.01%RG	0~120%RG ?	0.01%RG? 3min?CL0.05 0.02%RG? 3min?CL0.1	0.2%?CL0.05 0.5%?CL0.1	±0.05%RG? CL0.05 ±0.1%RG?CL0.1
Phase?	0.00°~359.99°		0.01°	0.00°-359.99°	0.01°		±0.05°
Frequency?	40Hz?~70Hz		0.002Hz	40Hz?-70Hz	0.002Hz		±0.003Hz
Power/Energy							±0.05%RG? CL0.05 ±0.1%RG?CL0.1 pf≥0.5
Output? Harmonics	2nd?to?21st		0.01%RG	≤40%

?
?
Other?Parameters
?

Aux.?Power?Supply	AC?220V±15%
Working?Environment	Environment?Temperature?20℃-30℃,?Humidity:RH?≤85%
Dimensions	440mm(L)×?445mm(W)×?180mm(H)
Weight	18KG
LCD?Size	7?inch?color?touch?screen

?
?
Competitive advantage :
We can follow the Customer-oriented principle, Artel Tech. aims to innovate hi-tech products and provide comprehensive solutions continuously, and continue to offer qualified products and excellent services to its global customers.
Artel\'s successful strategy is reflected in the number of certifications, including ISO9001 and CE quality system certification, Software Enterprise certificate issued by National Information Department, and hi-tech company certificate issued by government, etc.
?
?
