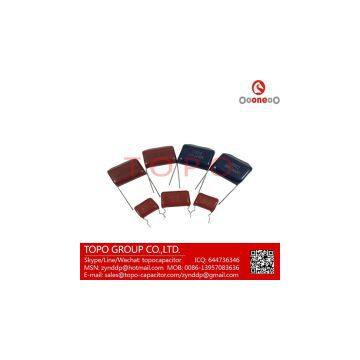

225j 250v metallized polypropylene film capacitor

225j 250v metallized polypropylene film capacitor

Technical data and specifications

Reference Standard: GB 10190-88(IEC 60384-16)

Climatic Category: 40/85/21
Rated Voltage: 100V,160V,250V,400V,630V
Capacitance Range: 0.0047-4.7uF
Capacitance Tolerance: ±5%(J), ±10%(K), ±20%(M)
Voltage Proof: 1.6UR(5S)
Dissipation Factor ≤0.1% (20°C, 1KHz)
Insulation Resistance (20°C,1min)
≥25000MΩ (CR≤0.33uF)
≥7500s (CR>0.33uF)

Features
Very low loss at high frequency, and suitable for high current.
High insulation resistance,long life due to self-healing effect.
Widely used in high frequency,DC,AC and pulse circuits.

Configuration
Non-inductive,wound with metallized polypropylene film as dielectrie and electrode with copper-clad steel leads and epoxy resin coating.
