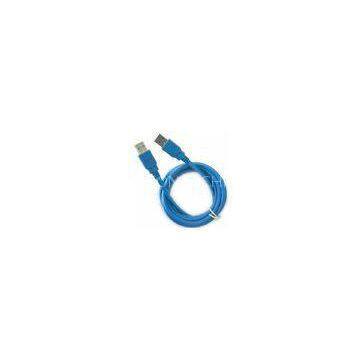

3.0 usb cable usb data transfer cable AM-AM

Features

USB3.0

USB2.0

Data Rate

SuperSpeed (5.0Gbps) additional

low-Speed (1.5Mbps)
full-Speed (12Mbps)
high-Speed (480Mbps)

Data Signal

SS OUT Differential Signal: 1 Pair
SS IN Differential Signal: 1 Pair additional

Differential Signal: 1 Pair

Connector Signals

4 wires: SuperSpeed
2 wires: DP/DM for USB 2.0
3 wires: Vbus/GNDx2

2 wires: DP/DM for USB 2.0
2 wires: Vbus/GND

Bus Protocol

No polling

Uses polling

Power Control

Configuration at multiple link levels

Suspend/Resume by Port

Power Supply to Bus

Max. 900 mA

Max. 500 mA

Item

USB?cable

Connector

Ni?plated

Connector?type

Type?A,?type?B,?type?C(mini),?type?D(micro)

Gender

Male,?female

conductor

CCS(copper-clad?steel),?99%?oxygen-free?pure?copper

Wire?gauge

AWG22,?AWG24,?AWG28,?AWG30

Sheath

PVC

Cable?OD

3.0mm,?3.5mm,?3.8mm,?4.5mm, 5.5mm, 6.0mm

Version

2.0,?3.0

Transfer?speed

Usb?2.0?up?to?480Mbps,?usb?3.0?up?to?5Gbps

Application

Computer,?cell?phones,printer,?usb?hub,?usb?car?reader…

Description

It?is?used?to?connect?the?USB-ready?computer?or?USB?hub?to?a?digital?camera?or?other

portable?device,? such?as?an?MP4?player?or?PDA,?etc.

This?cable?is?designed?and?manufactured?to?USB?specifications?to?ensure?it?delivers its?excellent performance.

Packing

1.?Polybag,printed?zip-lock?bag?or?blister?packaging?are?available.

2.According?to?customers.

MOQ

1000?PCS

Shipping?methods

Small?order?by?express,?mass?order?by?sea?or?by?air

Payment?terms

T/T,?Western?Union?and?paypal.?30%?deposit?and?the?balance?before?shipment

Delivery?time

within?15?working?days

After?sales?service

1?year?warranty
