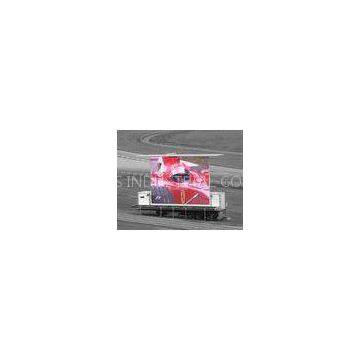

Soundboss P25 outdoor DIP full color LED board wall for public advertising

SBO-P25 (Pitch 25mm outdoor full color)

Colour temperature

5000~9000 k

Pixel structure

φ5 oval lamp, 2R1G1B

Pixel pitch

25mm

Pixel density

1, 600 dots/㎡

Luminance

5, 000cd/㎡

Module dimension

200mm(W) * 200mm(H)

Module resolution

8 pixel(W) * 8 pixel mm(H)

Cabinet dimension

1200 * 800mm

Cabinet resolution

40 * 32

Cabinet area

0.96 sq. meter

Optimal visual distance

>25m

Visual angel

110 / 50 degree (H/V)

Max power consumption

≤480w / ㎡

Average power consumption

≤200w / ㎡

Brightness adjustment

Adjust according to the environment

brightness software (0%-100%adjustable)

Gray scale

point by point 4096 gray grade levels of

each color, 16 bits γ correction available

Drive mode

Static, constant current

Frame frequency

≥60HZ

Refresh frequency

≥1000HZ

Input voltage

AC 90~260 volts

Operation temperature

﹣40℃~ +65℃

Operation humidity

10％～90％

Input signal

S-video, RF, RGB, Yuv, YC, composite…

Control system

DVI card + master control card + receiver card

MTBF

>5000 hrs

Life span (50% brightness)

100, 000 hrs

Malfunction dot rate

1/10000

Ingress protection rate (Front/ rear)

IP65 / IP54

Cabinet material

Epoxy paint coated, aluminum / iron

Application:

Rental / Permanent installation ava
