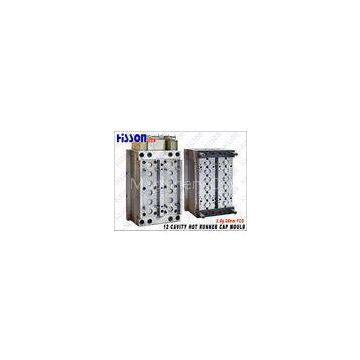

28mm PCO BPF PP Plastic Cap Mould , 2.8g 12 Cavity Cap Injection Mold

28mm PCO PP Plastic Cap Mould , 2.8g 12 Cavity Cap Injection Mold

Quick Detail:
?

28mm PCO Cap Injection Mold
12 Cavity
2.8g
Core And Cavity Material:718H/2316
Hot Runner

Description:

1. Process engineering
Material to be used : PP/PE
Anual Production Preview : >1.000.000
Type of injection system : Hot Runner System withSingle-point Temperature Control
Type of gating : Center of the part / Cosmetic Gate
Mould base steel : P20 (EquivalentNormalized 200HB)
Mould Base Parting Line Plates : Pre-hardened 30/32 HRC
Cavity Steel : 718H/2316 Hardened 55 HRC
Core steel : 718H/2316(Stainless) Hardened 55 HRC
Stripper Plate Inserts Steel : 718 Hardened 54/56 HRC
Slides Steel : 718H/2316 Hardened 38 HRC
Type of Ejection: StrippingPlate+CenterEjection
Type of Finish (Cavity side) : SPI A3 (Intermediate MirrorPolish)
Type of Finish (Core side) : SPI B2 (Sandpaper Finish Grit400)
Engravings: Part Number/CavityNr./Logo

Hisson Plastic Machinery Co.,Ltd. was established in 1996, is located in Ningbo, which is the second largest deep-water seaport in China.?

We are one of the leading manufacturers and exporters of PET machinery and other kinds of plastic machinery in china. We offer clients from a single machine to a complete production line, our main products include:

>>? HB-M series PET bottle semi-auto stretch blow molding machine
>>? HB-A series PET bottle automatic stretch blow molding machine
>>? HI-P series PET preform injection molding machine
>>? HI-G series Plastic products injection molding machine
>>? PET bottle blow mold
>>? PET preform Injection mold ??
>>? Other kind of plastic products injection mold
>>? Auxiliary equipment for PET bottle blowing
>>? Auxiliary equipment for preform injection
>>? Extrusion blow modling machine, extrusion blow molds and accessories.

2.8g 28mm PCO Cap Designv
