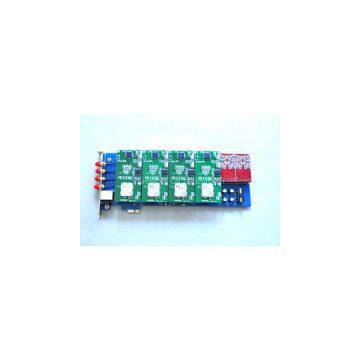

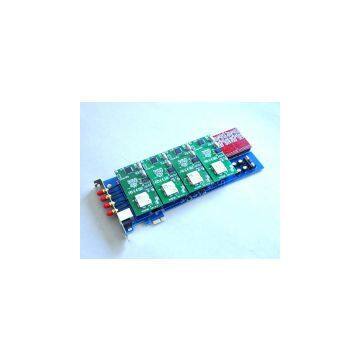

SinoV-GSM400E PCI-E Asterisk Card

SinoV-GSM400E PCI-E asterisk card

• Type：   SinoV-GSM400E

• Description：

  SinoV-GSM400E is a four-way wireless voice cards, slot type is PCI-E socket, line PCI-E 2.2 standards. It is mainly used in wireless, PSTN and INTERNET environment and Asterisk PBX system needs to provide all the features.

SinoV-GSM400E is a four-way wireless voice cards, slot type is PCI-E socket, line PCI-E 2.2 standards. It is mainly used in wireless, PSTN and INTERNET environment and Asterisk PBX system needs to provide all the features.

GSM 400E is a 4 port wireless Asterisk PCI-E card which is mainly applied to GSM, PSTN and Internet environment. Support the access of GSM, PSTN,telephone to realize GSM, PSTN, Internet integration. It supports all the functions of Asterisk PBX systems needed.

Features:
1,Support the access of wireless (GSM), PSTN, Phone.
2,Supports GSM wireless communication standard.
3,Support GSM: 850M/900M/1800M/1900M
4,Support 4 channels, user can choose to insert wireless, FXO or FXS module in each channel.
5,The PCI-E slot is based on PCIE2.2.
6, Support the reversal function of polarity when call out by wireless.
7 32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention.
8, It supports all the functions of Asterisk PBX systems needed.

Applications:
1 GSM - VoIP gateway
2 Mobile IP-PBX
3 GSM  Call back
4 GSM  wireless bypasses system
5 GSM  wireless call centre.

Hardware and software requirements:
1 Interface: PCI 2.2
2 CPU 800+MHZ
3 RAM 128+MB
4  Linux kernel 2.4.x or 2.6.x
Size and Weight
1 Size(L*W*H): 210*105*24MM
2 Weight: 305g

The environmental instructions for using:
1 Temperature Operation: 0 to 80°C
2 Temperature Storage: -35°C to 120°C
3 Humidity: 10% to 90% Non-condensing
4 Voltage: 5V/12V
5 Power Dissipation Mas: 7.83w/39.82w
